SN-4T
Heavy Duty Industrial Forklifts | Factory Direct Sales

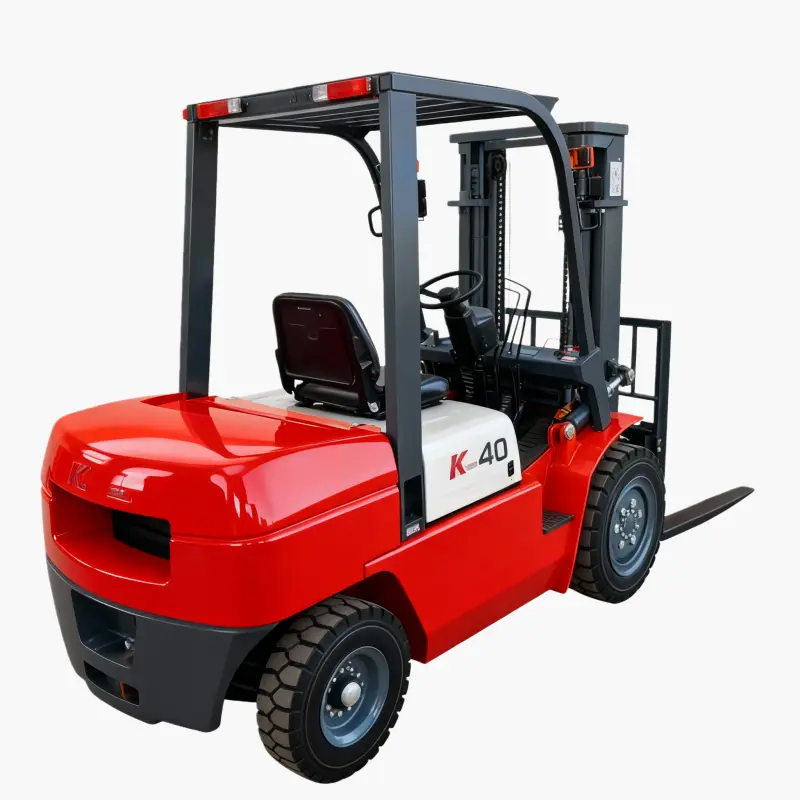

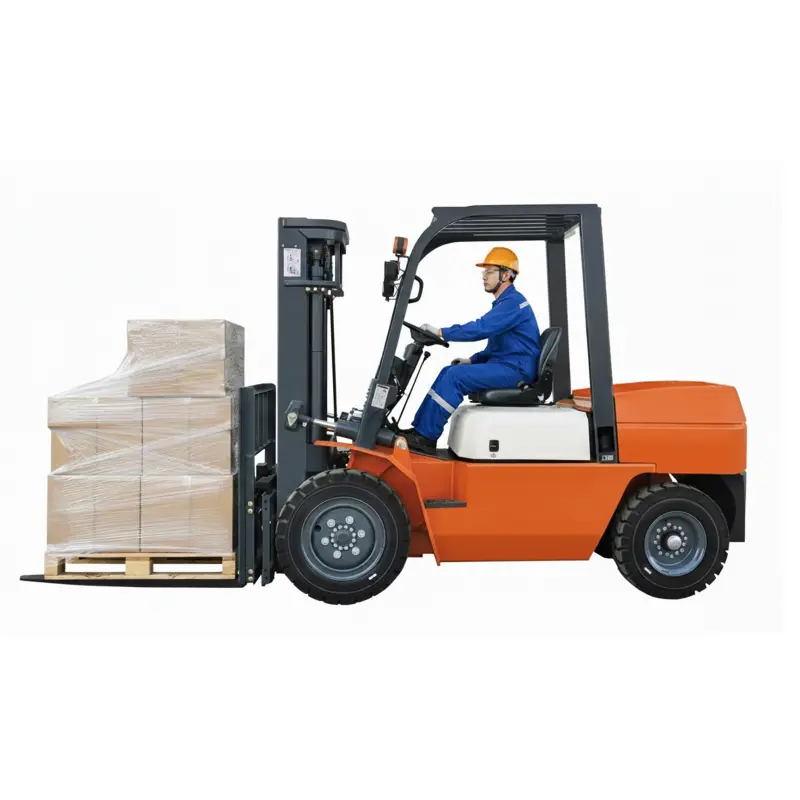

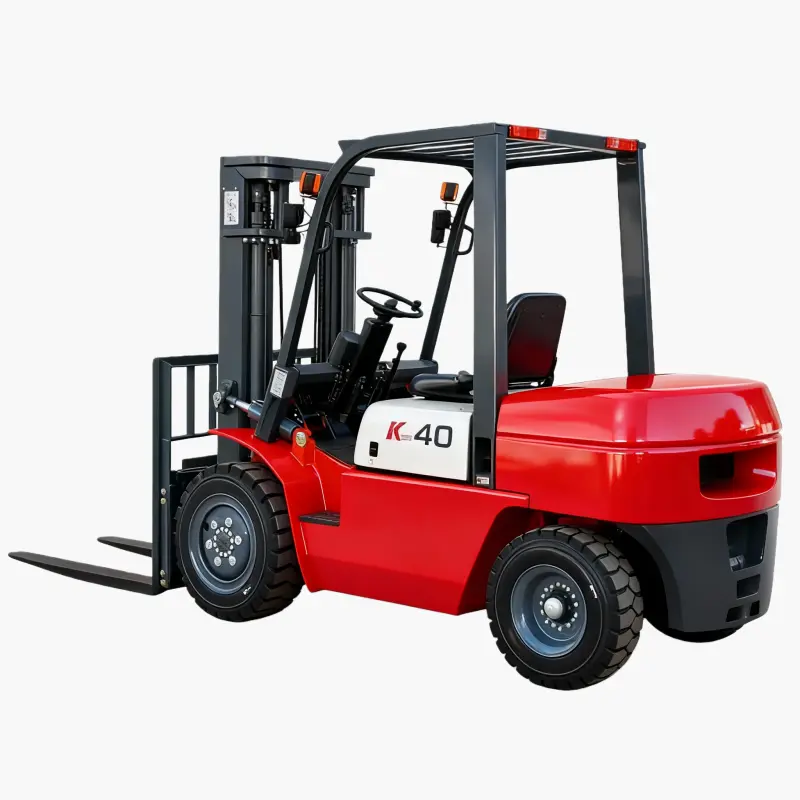

The 4-ton diesel forklift is designed for high-intensity material handling applications in warehouses, factories, ports, logistics centers, and construction sites. Featuring a reliable diesel engine and a reinforced mast structure, this forklift boasts powerful lifting performance, excellent stability, and low operating costs.
With a 4000 kg rated load, a compact turning radius, and a durable hydraulic system, the SN40 forklift is ideal for heavy-duty indoor and outdoor operations.
Key Features and Benefits

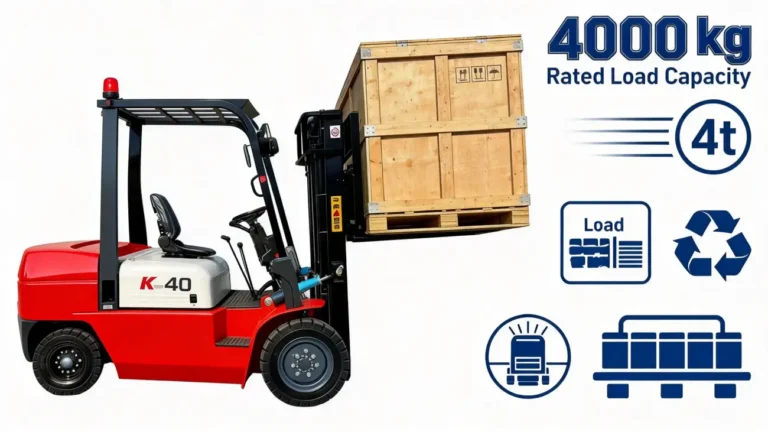

✔ High Rated Load – 4000 kg
Designed for heavy materials, pallets, and industrial goods, ensuring stable lifting even under maximum load.
✔ Powerful Diesel Engine
Equipped with a new Chai 4D30G31 engine, delivering 36.8 kW of power, ensuring stable performance and high fuel efficiency.
✔ Compact and Flexible
Minimum Turning Radius: 2800 mm
Load Center: 500 mm
Perfect for confined working environments.
✔ Robust and Durable Mast and Forks
Standard Lifting Height: 3000 mm
Fork Dimensions: 1070 × 150 × 45 mm
The robust mast design ensures smooth lifting and a long service life.
✔ Stable and Safe Operation
Canopy Protection Height: 2230 mm
A wide wheelbase (1900 mm) and optimized track improve driving stability.
✔ Easy Maintenance and Low Cost
The mechanical/hydraulic drive system reduces maintenance complexity and downtime.
Applications
Warehouses and Distribution Centers
Manufacturing Plants
Logistics and Cargo Handling
Ports and Docks
Construction Sites and Industrial Sites
Looking for a reliable 4-ton diesel forklift supplier?
Contact us now for pricing, specifications, shipping options, and OEM solutions.
| Item | Value |
|---|---|
| Fuel Type | Diesel |
| Rated Load | 4000kg |
| Load Center | 500mm |
| Lifting Height | 3000mm(Customizable height) |
| Fork Dimensions | 1070×150×45mm |
| Ground Clearance | 135mm |
| Overhead Guard Height from Ground | 2230mm |
| Maximum Travel Speed (Fully Loaded) | 18.5km/h |
| Maximum Lifting Speed (Fully Loaded) | 420mm/s |
| Maximum Tractive Effort (Fully Loaded) | 20KN |
| Maximum Climbing Angle | 20˚ |
| Overall Length with Forks | 4105mm |
| Overall Length without Forks | 3035mm |
| Overall Width | 1400mm |
| Mast Closed Height | 2190mm |
| Mast Total Lifting Height | 4270mm |
| Front Tire | 250-15-12PR |
| Rear Tire | 7.00-12-12PR |
| Wheelbase | 1900mm |
| Track Width | 1160/1065mm |
| Total Machine Weight | 5300kg |
| Engine Model | Xinchai 4D30G31 |
| Engine Rated Power | 36.8kw/r.p.m |
| Working Pressure | 18.5Mpa |
- Lithium-ion battery upgrade available.
- Custom lift heights supported.
- Fork length customization available.
- Compatible with EU and US standard chargers.
- OEM / ODM branding customization supported.
- Multiple mast options available.
- Solid or pneumatic tire options.
- Custom body and counterweight design available.
- Ergonomic seat upgrade optional.
- Overhead guard or canopy optional.
- Hydraulic side shifter optional.
- Hydraulic fork positioner optional.
- Bucket attachment available.
