SN-22

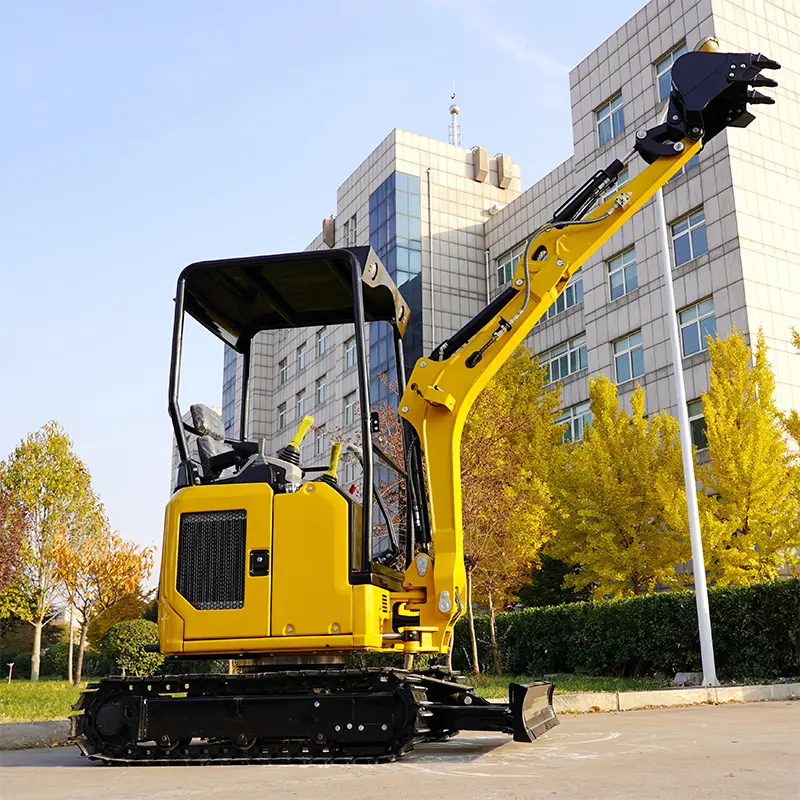

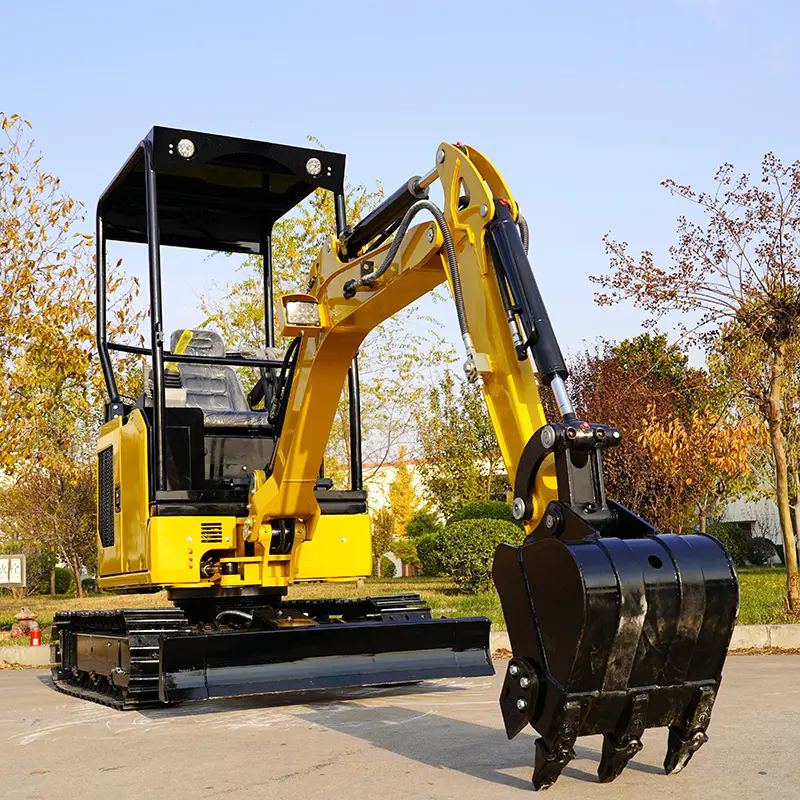

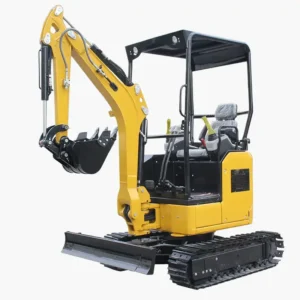

SN22 Mini Excavator | 2.2-ton Compact Excavator
The SN22 mini excavator is a 2.2-ton compact machine that balances efficiency, durability, and operator comfort. Equipped with a reliable Yanmar engine and an advanced hydraulic system, it delivers consistent performance and precise control even in confined and harsh working environments.
Its zero-tail swing design allows for safe operation close to walls and obstacles, while its reinforced construction ensures a long service life even under continuous heavy loads.
Key Advantages
Powerful Digging Performance
- Optimized hydraulic output delivers powerful digging force and efficient digging operations.

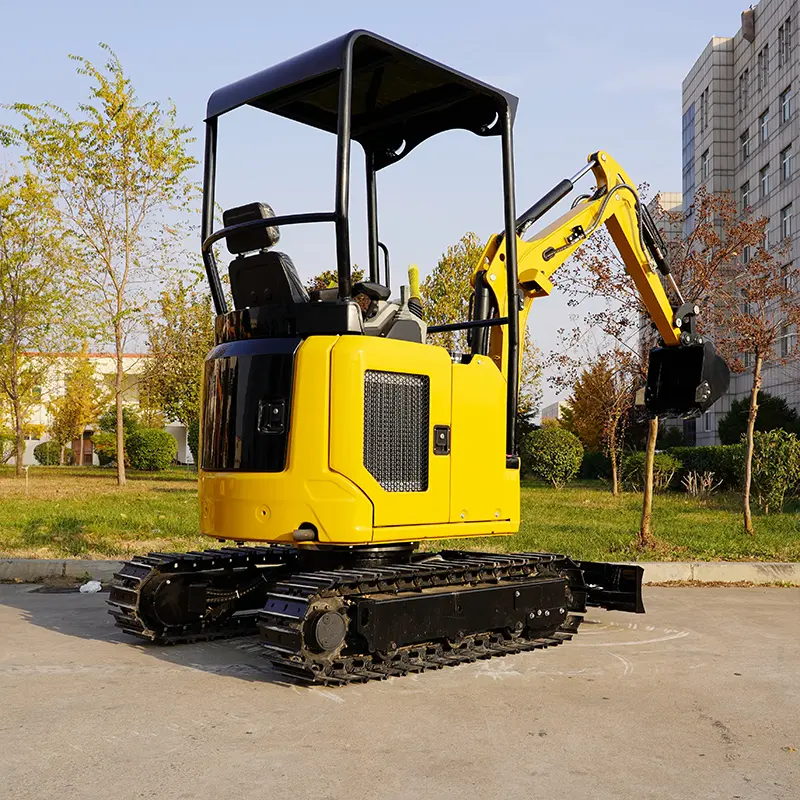

Zero-Tail Swing Design
- 360° rotation with no rear overhang enhances safety and flexibility when operating in confined spaces.
Reliable Engine System
Equipped with a Yanmar 3TNV80F engine that meets US EPA/Euro 5 emission standards.
Smooth and Responsive Hydraulic System
- Load-sensing hydraulic system ensures precise, stable, and energy-efficient operation.
Enhanced Stability
Wide tracks and a balanced chassis design improve traction and operational safety.
Easy Maintenance
- A three-sided opening engine hood facilitates quick inspection and maintenance.
Standard Configuration
Zero tail sway structure

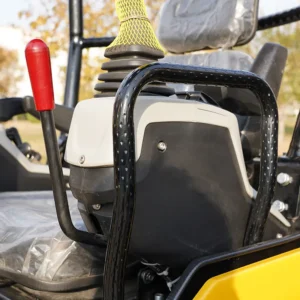

Pilot-operated hydraulic joystick control
Dual-speed travel motor
Reinforced bulldozer blade
LED work lights
Heavy-duty rubber tracks
Applications
Construction and renovation
Landscaping
Farm and agricultural operations
Trenching and utility installation
Municipal and maintenance projects
Why Choose the SN22 Mini Excavator
The SN22 mini excavator combines compact size with professional-grade performance. With reliable components, stable hydraulic control, and compliance with international emission standards, it is ideal for equipment dealers, contractors, and rental companies seeking durability and efficiency.
Direct sales, rigorous quality control, and flexible customization options ensure consistent value for the global market.
| Item | Value |
|---|---|
| Weight | 2200 kg |
| Engine | YANMAR3TNV80(EURO 5 and EPA emission) |
| Engine Power | 15.2kw/20HP |
| Bucket Capacity | 0.04 m³ |
| Max.Digging Height | 3016mm |
| Max.Dumping Height | 2133mm |
| Max.Digging Depth | 2050mm |
| Max.Digging Radius | 3800mm |
| Turning Radius | 1645mm |
| Bucket excavating force | 16KN |
| Chassis Width | 1100mm-1400mm |
| Track Length | 1500mm |
| Gradeability | 40° |
| Chassis Ground Clearance | 385mm |
| Track Width | 230mm |
| Volume of fuel tank | 16L |
| Overall Dimension | 3550*1400*2203mm |
| Transport Length | 3550mm |
| Excavator Height | 2203mm |
| Hydraulic flow | 40L/Min |
| Hydraulic tank capacity | 16L |
| Working pressure | 16Mpa |
Excavator Attachments
Customize Your Machine
- Engine Options: Briggs & Stratton, KEPCO, ZC, Huapuri (Optional)
- Controls: Hydraulic Pilot Control System
- Cabin Type: Enclosed Cab / Open Canopy
- Track Type: Rubber Tracks / Steel Tracks
- Structure: Heavy-Duty Boom & Arm
- Hydraulics: Upgraded Pump & Valves
- Attachment System: Quick Hitch
- Lighting: Auxiliary Work Lights

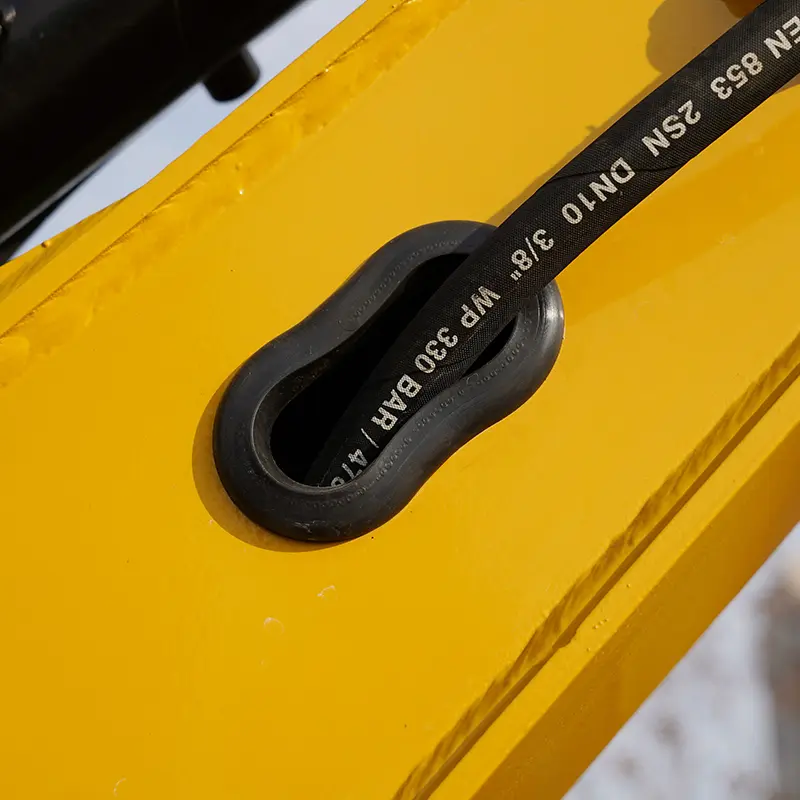

- Durability & Comfort: Premium Seat / Reinforced Hoses
