SN-25E

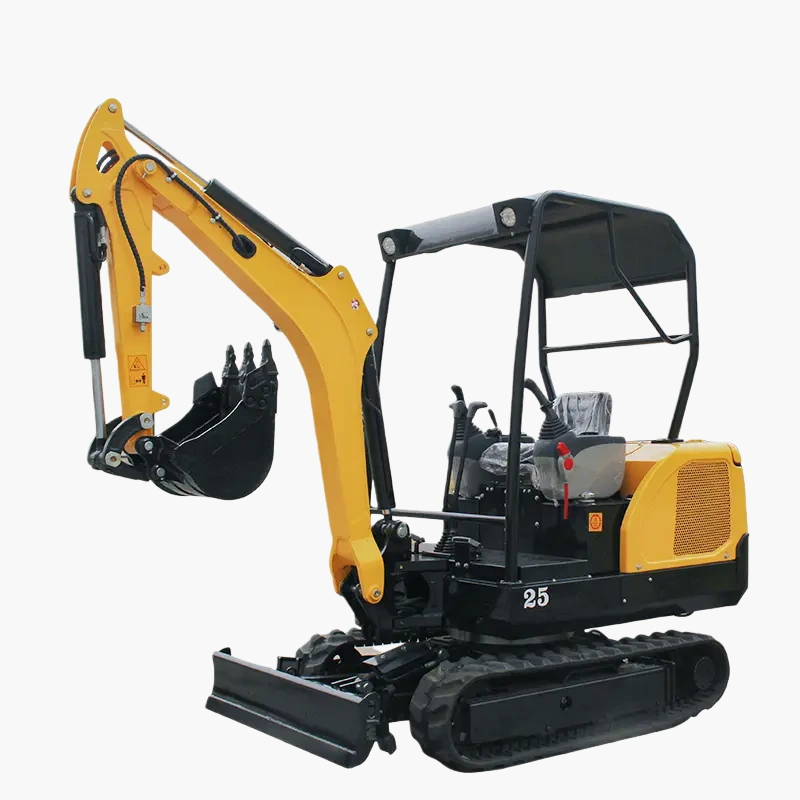

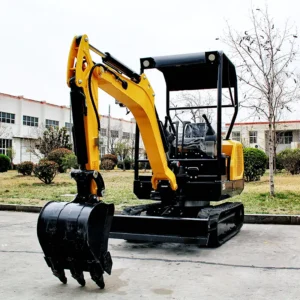

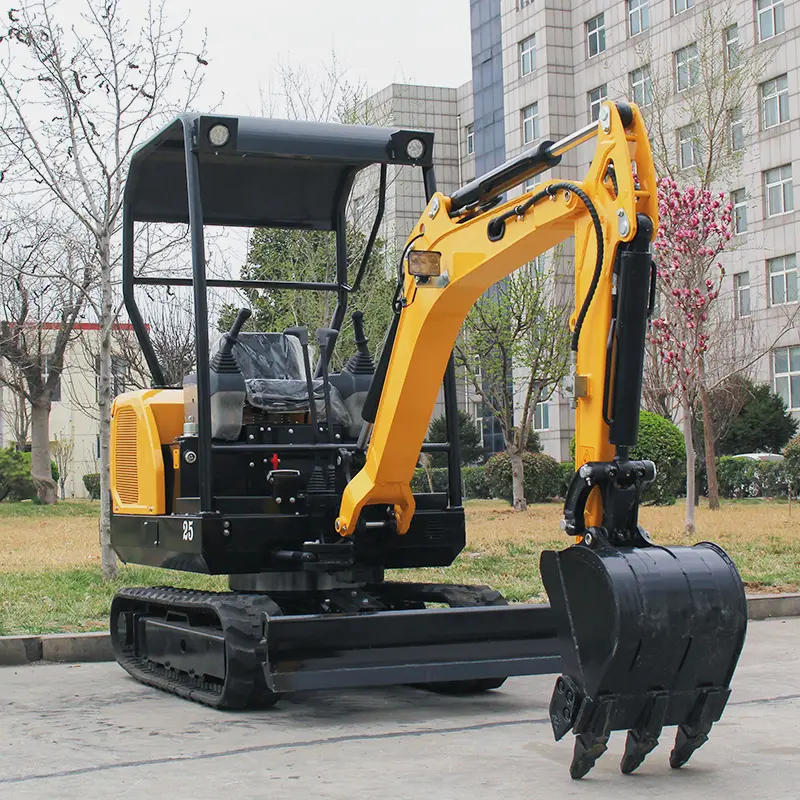

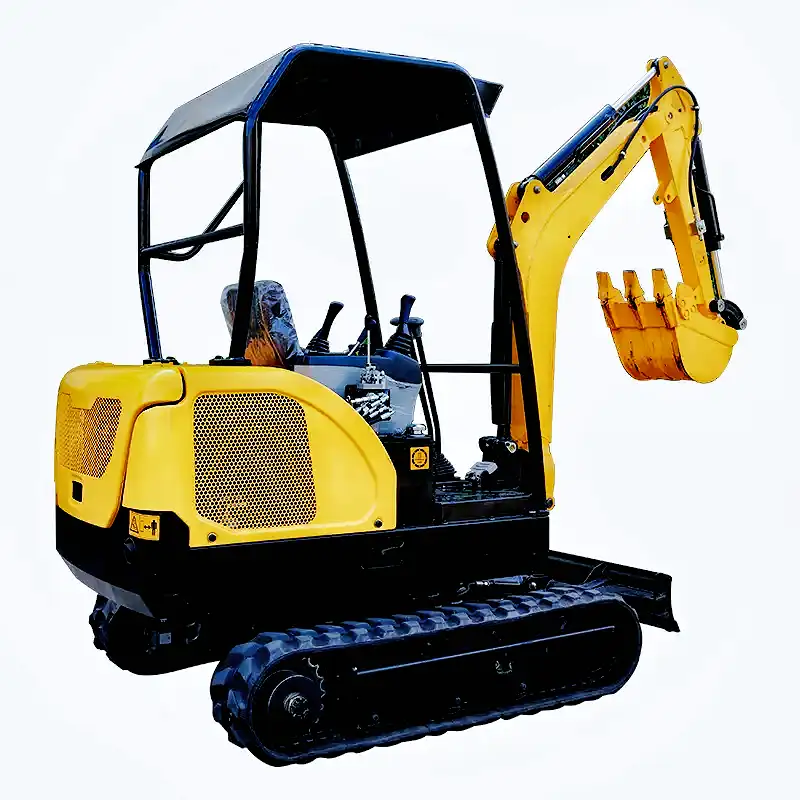

25E Electric Mini Excavator
The 25E Electric Mini Excavator is a powerful yet environmentally friendly compact excavator designed for urban construction, interior demolition, landscaping, and municipal engineering. Powered by a 6kW lithium-ion battery system, it delivers robust digging performance while achieving zero emissions, low noise, and low operating costs, making it the ideal electric excavator for modern construction sites.
25E Electric Mini Excavator – Zero-Emission Compact Excavator for Urban Construction
The 25E Electric Mini Excavator is a next-generation battery-powered compact excavator designed to meet the growing demand for environmentally friendly construction machinery.
This electric mini excavator has a working weight of 2300 kg, a robust construction, and an advanced hydraulic system, offering performance comparable to diesel models while saving on fuel costs and reducing emissions.
This 25E mini excavator is CE, EPA, and EURO 5 certified, suitable for the global market, and particularly ideal for urban construction, interior projects, residential areas, and environments with noise restrictions.
25E Electric Mini Excavator Key Features
🔋 Pure Electric Power System
High-performance Lithium Iron Phosphate Battery (LiFePO₄)
Rated Motor Power: 6 kW
Zero Fuel Consumption, Zero Emissions
Low Noise, Suitable for Indoor and Nighttime Operation
⚙️ Advanced Hydraulic System
Imported Multi-way Valve and Original Hydraulic System
Load-sensing Piston Pump, Smooth and Precise Operation
Dual Rotary Motors, More Powerful and Longer Service Life
🏗 Powerful Digging Performance
Maximum Digging Depth: 2241 mm
Maximum Digging Height: 3200 mm
Maximum Digging Radius: 3800 mm
Maximum Digging Force: 16 kN
🚜 Stable and Durable Structure

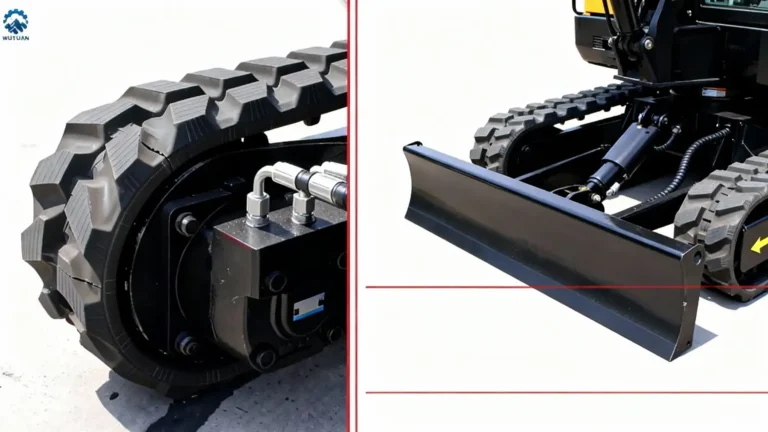

Reinforced Chassis and Heavy-duty Bulldozer Blade
Optional Wide Tracks (1100–1400 mm Adjustable)
Rubber Tracks, Stronger Grip, Safe and Reliable, High Stability

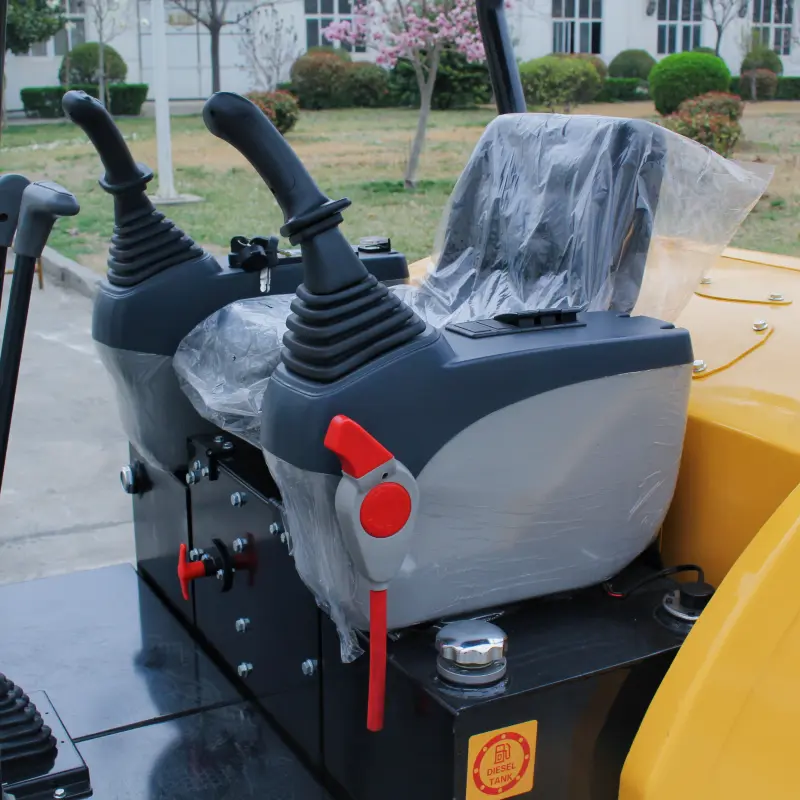

🧠 Easy and comfortable operation
Hydraulic control system
Ergonomic control lever
Smooth response, effectively reducing operator fatigue
Application Areas
The 25E Electric Mini Excavator is widely used in:
Urban construction projects
Indoor demolition and renovation
Landscaping
Municipal engineering
Residential areas and schools
Noise and emission restricted work sites

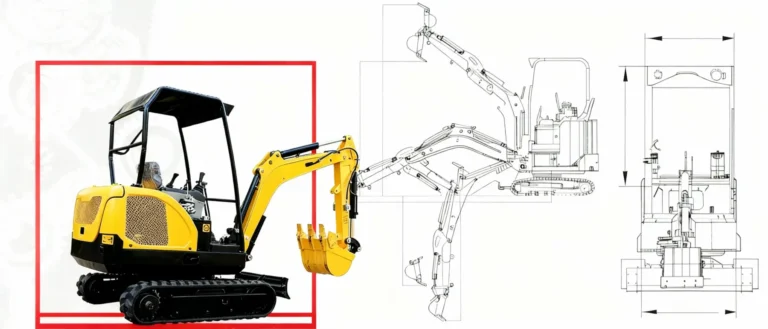

| Item | Value |
|---|---|
| Weight | 2500 kg |
| Engine | Lithium Battery |
| Motor Power | 6KW |
| Power consumption per hour | 1kw/h |
| Max.Digging Height | 3200mm |
| Max.Dumping Height | 2290mm |
| Max.Digging Depth | 2241mm |
| Max.Digging Radius | 3800mm |
| Turning Radius | 1645mm |
| Bucket excavating force | 16KN |
| Bucket Capacity | 0.035m³ |
| Chassis Width | 1100mm-1400mm |
| Track Length | 1500mm |
| Gradeability | 40° |
| Chassis Ground Clearance | 385mm |
| Track Width | 230mm |
| Overall Dimension | 3700*1100/1400*2203mm |
| Transport Length | 3700mm |
| Excavator Height | 2203mm |
| Battery Capacity | 200Ah |
| Battery Voltage | 72V |
| Charging Time | 6H-8H |
| Decibels within 1 meter | <55 |
Excavator Attachments
Customize Your Machine
- Engine Options: Briggs & Stratton, KEPCO, ZC, Huapuri (Optional)
- Controls: Hydraulic Pilot Control System
- Cabin Type: Enclosed Cab / Open Canopy
- Track Type: Rubber Tracks / Steel Tracks
- Structure: Heavy-Duty Boom & Arm
- Hydraulics: Upgraded Pump & Valves
- Attachment System: Quick Hitch
- Lighting: Auxiliary Work Lights
- Durability & Comfort: Premium Seat / Reinforced Hoses
