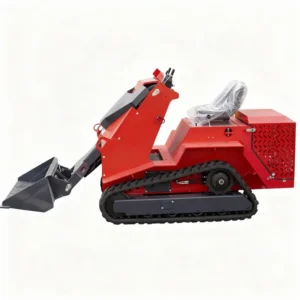

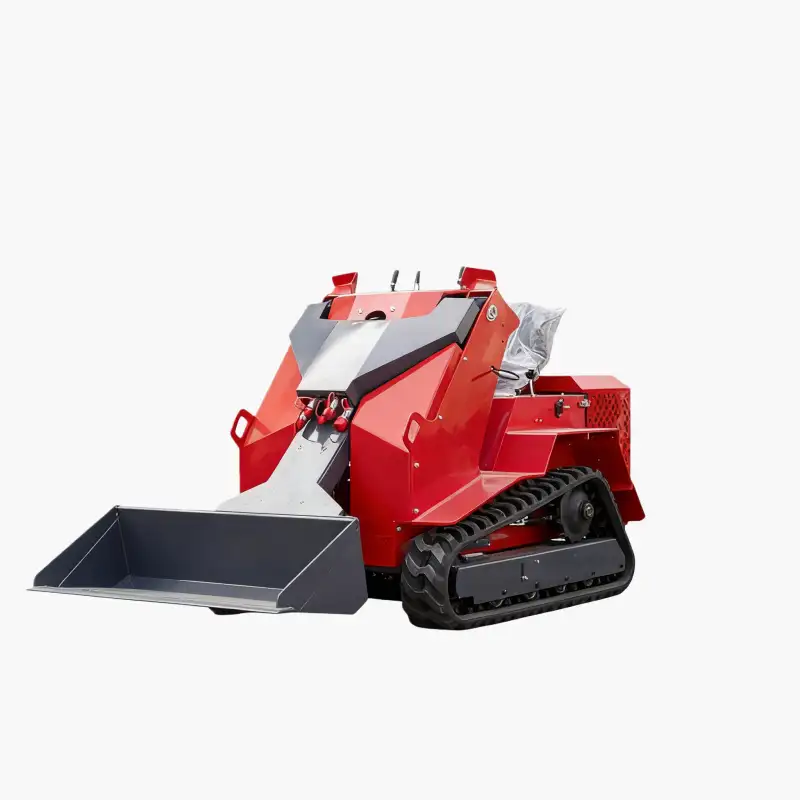

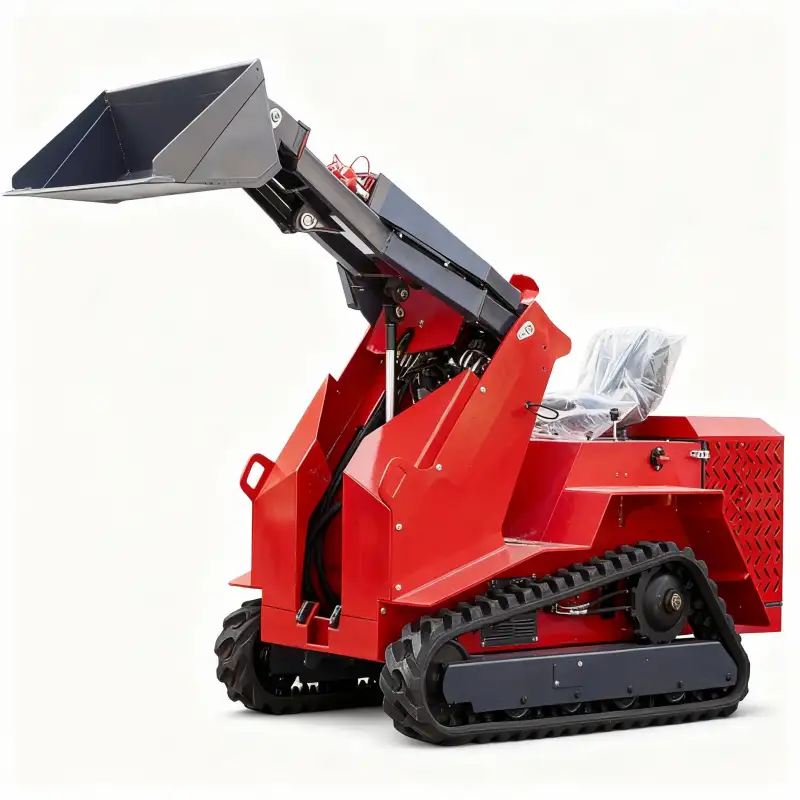

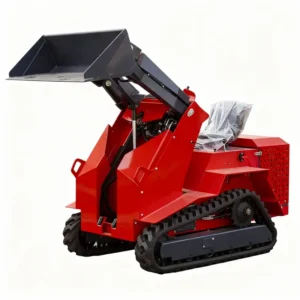

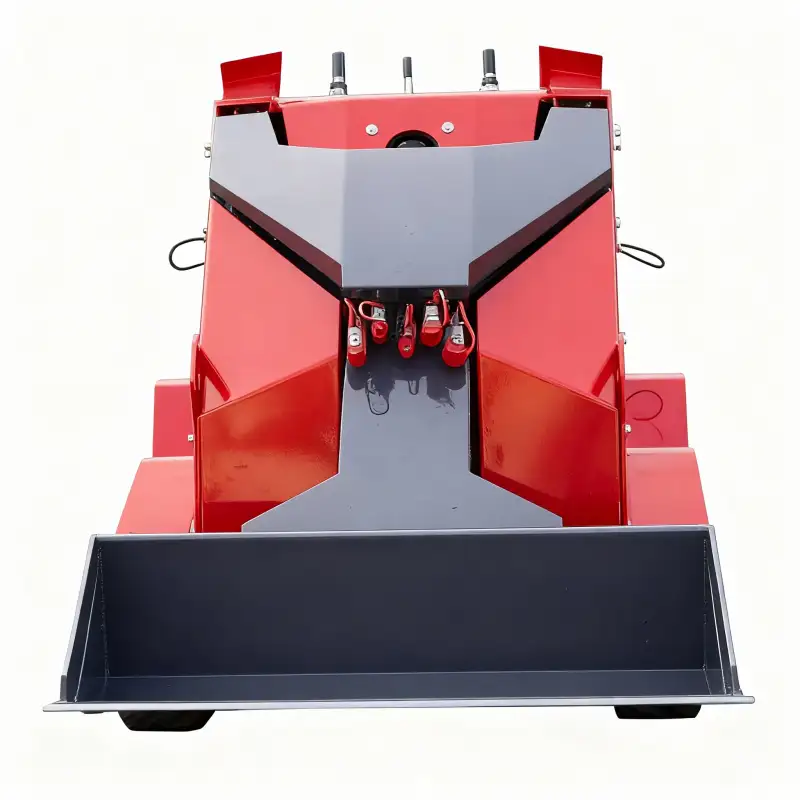

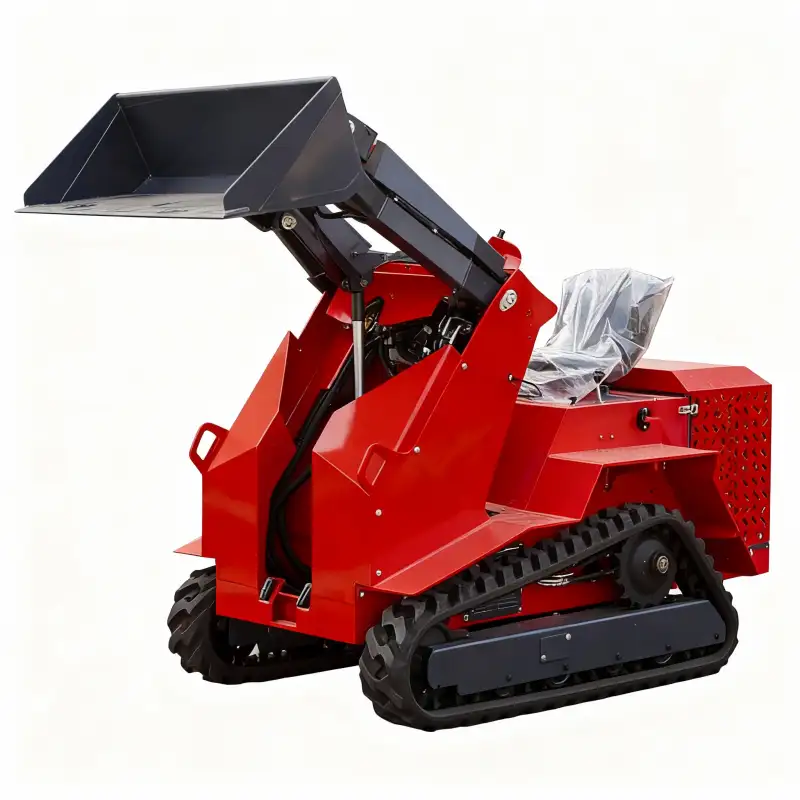

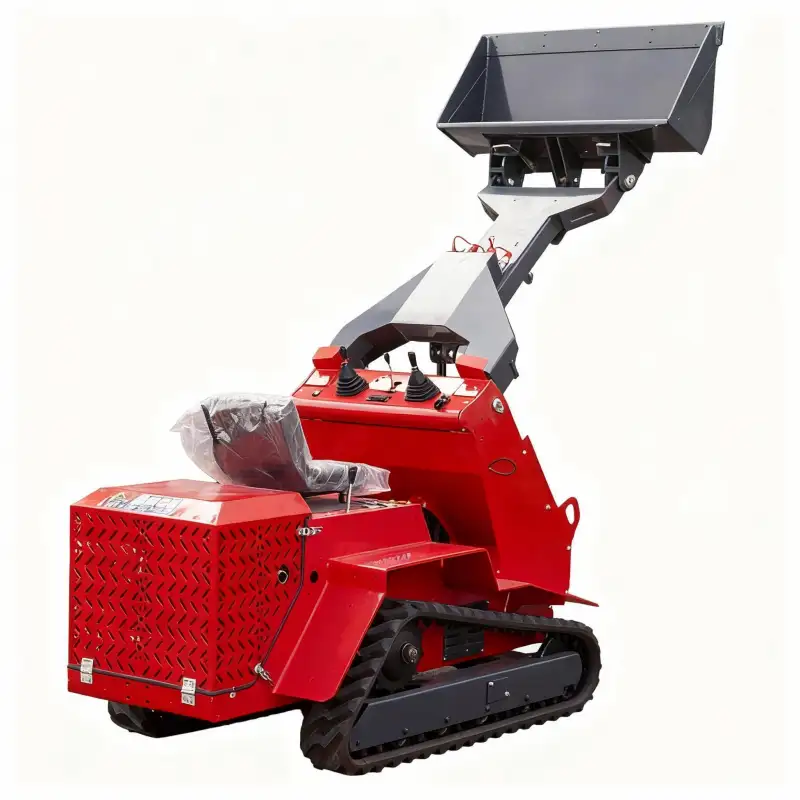

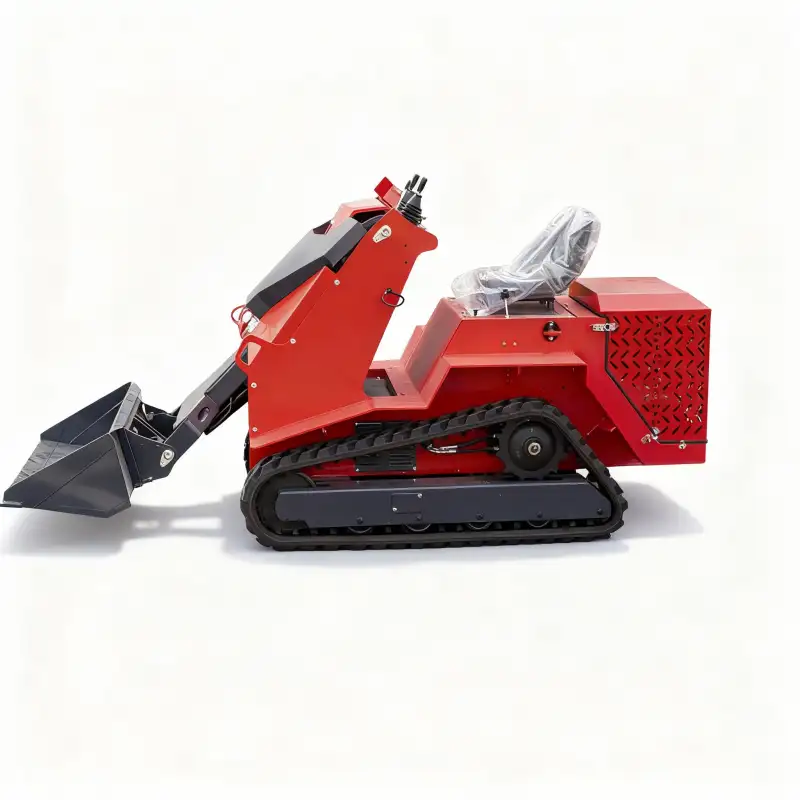

SN-T490
The SN-T490 mini skid steer loader is a compact yet powerful tracked loader designed for construction, landscaping, agriculture, and indoor or low-emission work environments.
The SN-T490 offers both diesel and electric power options, featuring an enhanced hydraulic system and a larger working range, providing exceptional flexibility, productivity, and reliability for professional users worldwide.
Key Features of the SN-T490 Mini Skid Steer Loader
🚜Diesel and Electric Power Options
Optional Koop / Rato / Runtong diesel engine or electric motor
Electric version power: 8 kW (72V 200Ah battery)
Diesel version meets EPA / EURO 5 emission standards
Suitable for outdoor construction and indoor emission-restricted environments

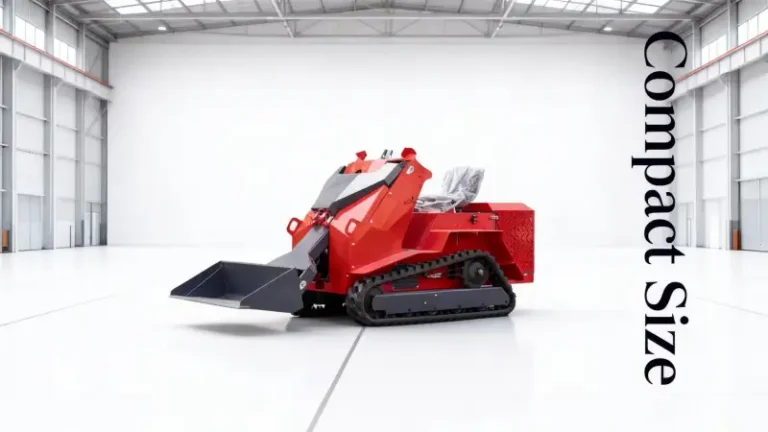

⚙️Compact Size, Larger Working Range
Rated load capacity: 250 kg
Maximum load capacity: 350 kg
Maximum breakout force: 4.5 kN
Longer dumping distance and higher working height compared to standard mini models

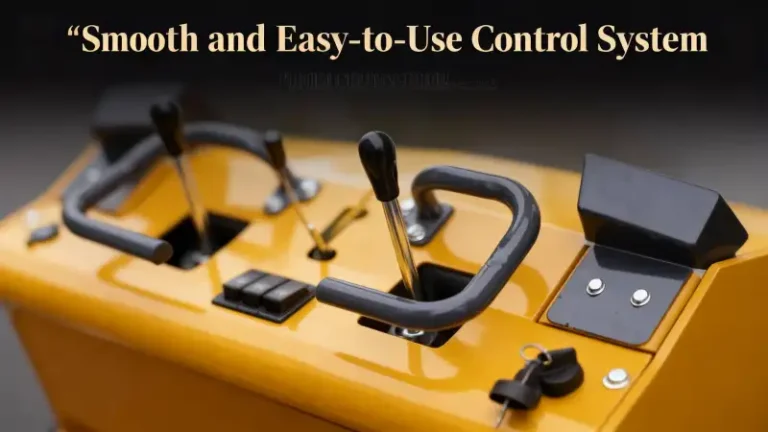

🔩Smooth and Easy-to-Use Control System
Ergonomic central control system
Simple operation, suitable for beginners
Stable operation, smooth lifting and dumping actions
Work cycle time: 9 seconds
✅Reliable Hydraulic System
High-quality hydraulic cylinders
Simple structure, low failure rate
Working system pressure: 17–21 bar
Stable continuous operation performance
🔄Multiple Attachment Compatibility
Quick-change attachment system
Compatible with the following attachments: standard bucket, auger, grapple, sweeper, and other customized attachments
One machine adapts to multiple work scenarios
💡LED Lighting and Clean Design
High-brightness LED work lights
Long service life and excellent lighting effect
Concealed hydraulic hoses, clean layout, and good protection
Application Areas
The SN-T490 mini skid steer loader is suitable for:
Construction and renovation projects
Landscaping and garden maintenance
Farms, barns, and livestock facilities
Municipal maintenance
Warehouses and indoor workplaces (electric version)
Looking for a reliable mini skid steer loader supplier?
📩Contact us today for pricing, specifications, and customized solutions.
| Item | Value |
|---|---|
| Model | T490 |
| Operating weight | 1200kg |
| Bucket capacity | 0.12m³ |
| Climbing ability | 25º |
| Maximum breakout force | 4.5KN |
| Rated load | 250kg |
| Maximum load | 350kg |
| Travel speed | 0-6km/h |
| Three-item sum of work | 9s |
| Working system pressure | 17-21bar |
| Bucket width | 1050mm |
| Max loading height | 1740mm |
| Max dumping height | 1400mm |
| Max operating height | 2530mm |
| Height to bucket pin | 1933mm |
| Max height bucket dump angle | 63º |
| Min heiaht | 1300mm |
| Tail length | 500mm |
| Ground clearance | 230mm |
| Dumping distance | 595mm |
| Track contact length | 1350mm |
| Overall dimensions | 2700*1100*1300mm |
| Length including bucket | 2700mm |
| Length excluding bucket | 2300mm |
| Track model | 180*72*45 |
| Engine Brand | Lithium electricity/KOOP/Rato/B&S |
| Engine Model | Lithium iron phosphate/292f/R740/Vanguard23 |
| Rated power | 8kw、72V、200ah/15/19.2/17kw |
| Cylinder | 2 |
| Intake method | Naturally aspirated |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 10L |
