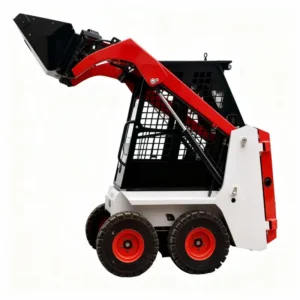

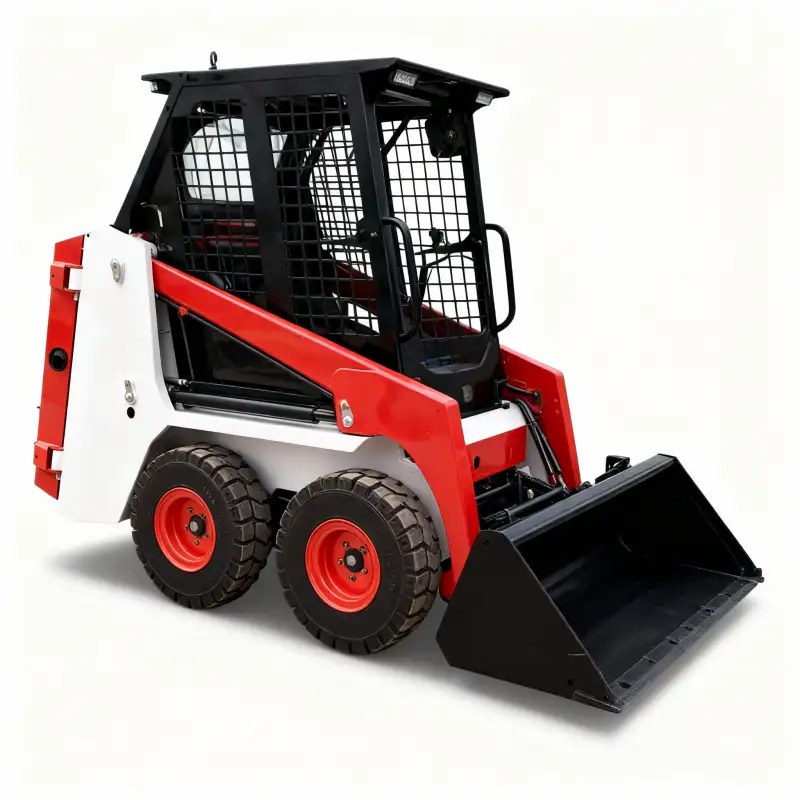

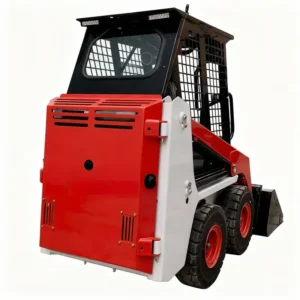

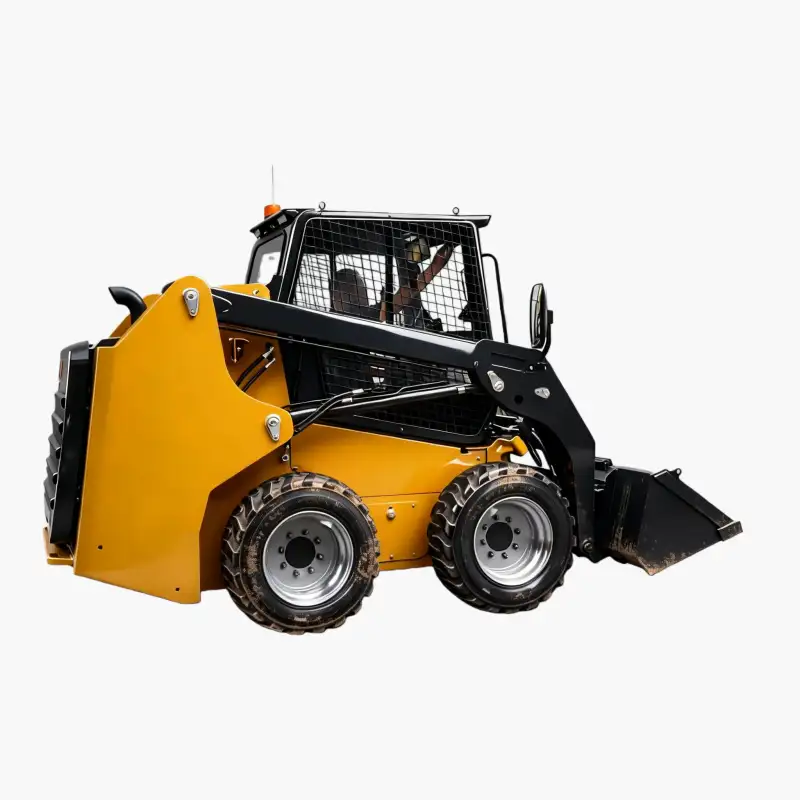

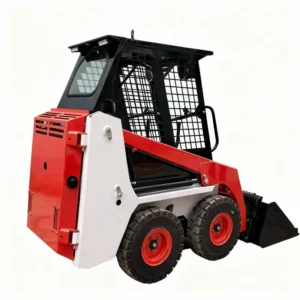

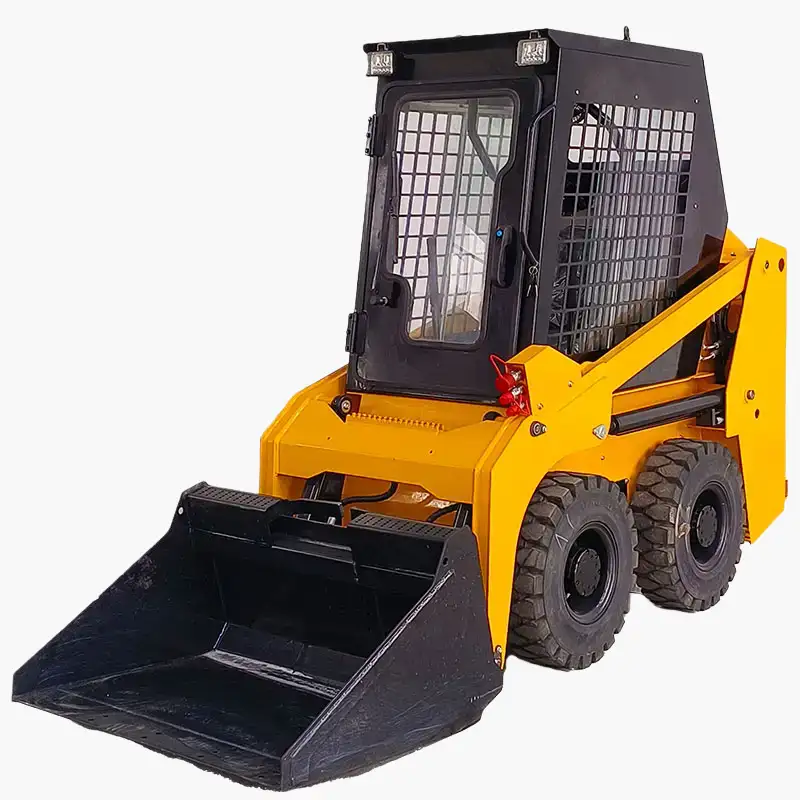

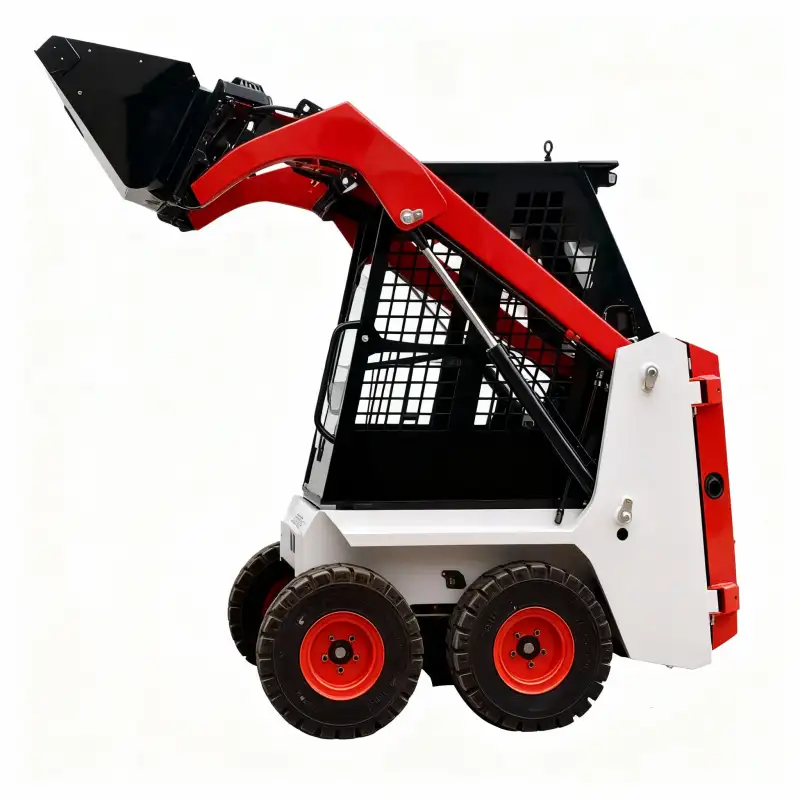

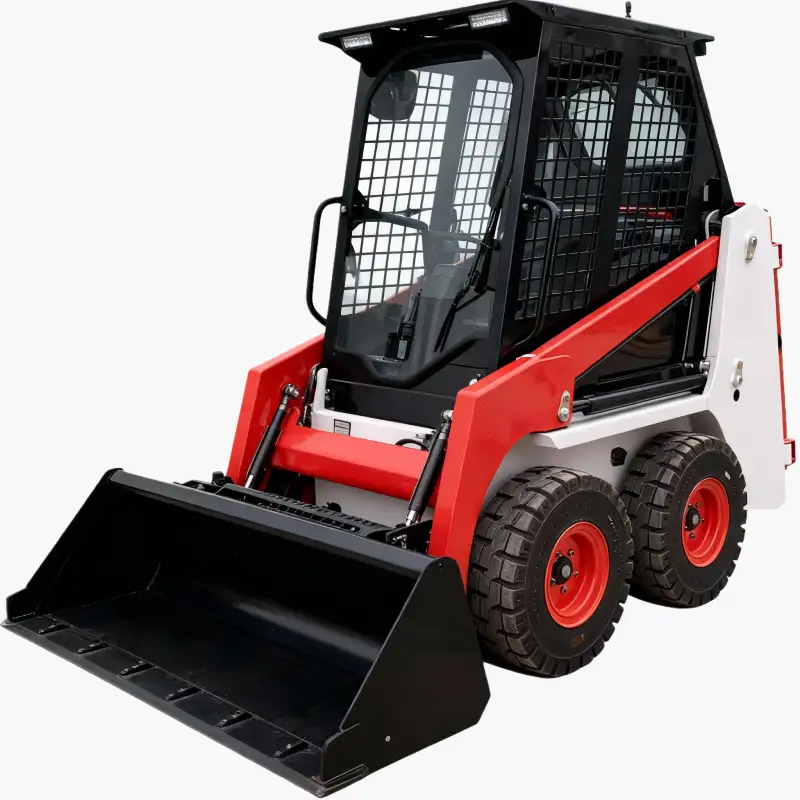

SN-S25
Compact Skid Steer Loader for Construction, Landscaping, and Agriculture
The S25 Mini Skid Steer Loader is a compact, powerful, and versatile machine designed for confined spaces and high-intensity operations. Ideal for construction sites, landscaping, farms, rental fleets, and municipal engineering, the S25 offers reliable performance, low operating costs, and excellent maneuverability. Factory direct sales, highly competitive pricing, fast delivery, and OEM/ODM support available.
Key Features and Benefits

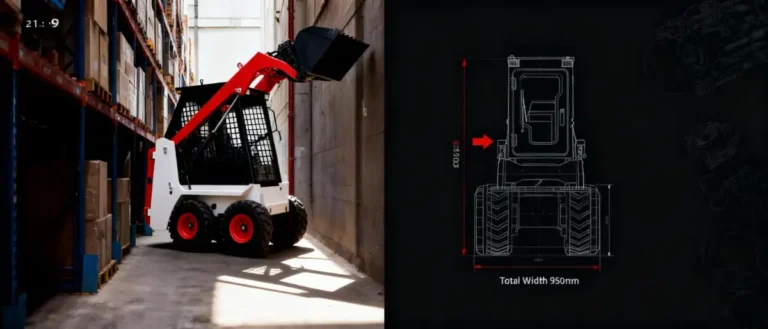

Compact Design for Narrow Spaces – With a total width of only 950 mm, it’s ideal for indoor work, gardens, and tight work areas.
High-Performance Diesel Engine – Equipped with a Laiton 385 or Yanmar 380 engine, delivering a stable power of up to 18.8 kW.

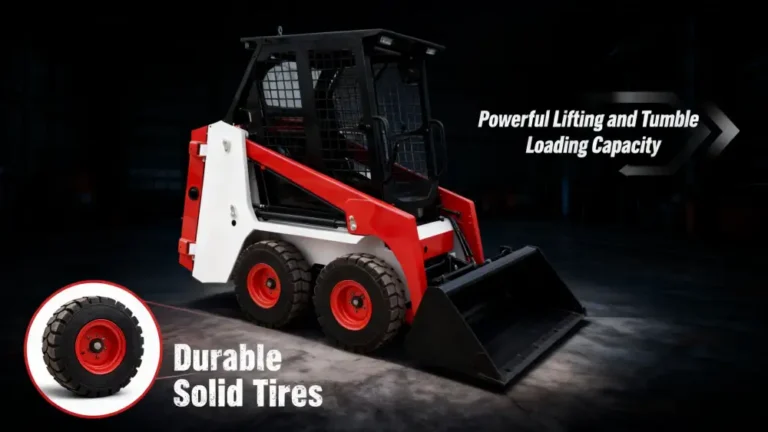

Powerful Lifting and Tumble Loading Capacity – Maximum working height of 3410 mm and tipping height of 2000 mm enable efficient material handling.
Durable Solid Tires – 570×155 solid tires ensure superior stability and puncture resistance.

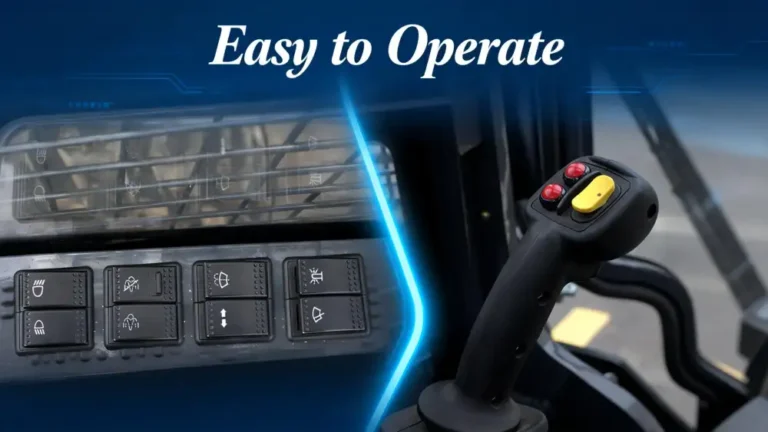

Easy to Operate, Low Maintenance – Simple controls, robust construction, and low maintenance costs.

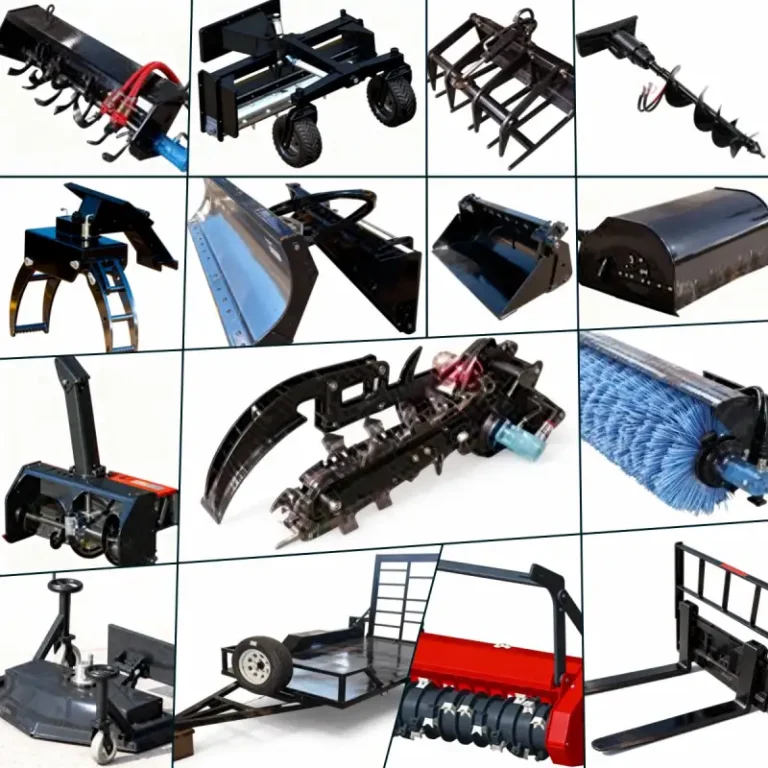

Multiple Attachment Compatibility – Supports buckets, augers, trenchers, grapples, sweepers, and other skid steer loader attachments.

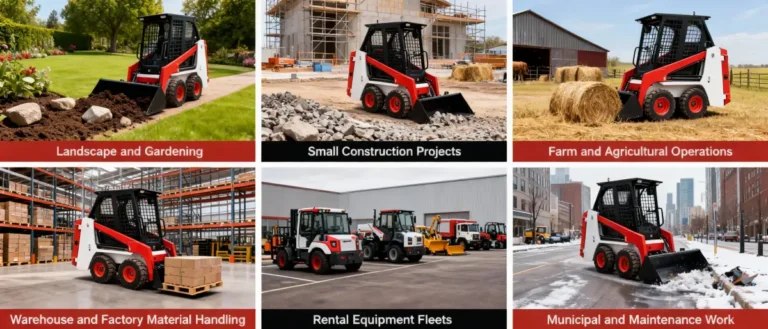

Applications
The S25 mini skid steer loader is widely used in:
- Landscape and Gardening
- Small Construction Projects
- Farm and Agricultural Operations
- Warehouse and Factory Material Handling
- Rental Equipment Fleets
- Municipal and Maintenance Work
Looking for a compact, reliable, and affordable mini skid steer loader?
👉 Contact us today for the latest S25 pricing, specifications, and attachment options. Global dealers and distributors are welcome to cooperate.
| Item | Value |
|---|---|
| Model | S25 |
| Operating weight | 1665kg |
| Bucket capacity | 0.22m³ |
| Climbing ability | 25º |
| Maximum breakout force | 14.5KN |
| Rated load | 450kg |
| Maximum load | 850kg |
| Travel speed | 0-12km/h |
| Vehicle width | 900mm |
| Rated pressure | 18mpa |
| Bucket width | 1000mm |
| Max loading height | 2284mm |
| Max dumping height | 1890mm |
| Max operating height | 3155mm |
| Height to bucket pin | 2398mm |
| Max height bucket dump angle | 22º |
| Min heiaht | 1836mm |
| Ground clearance | 245mm |
| Dumping distance | 550mm |
| Wheelbase | 722mm |
| Overall dimensions | 2607*1000*1836mm |
| Length including bucket | 2607mm |
| Length excluding bucket | 1887mm |
| Tire model | 570*155 |
| Engine Brand | KUBATA |
| Engine Model | D1105-E4B |
| Rated power | 18.2kw |
| Cylinder | 3 |
| Intake method | Naturally aspirated |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 24L |
