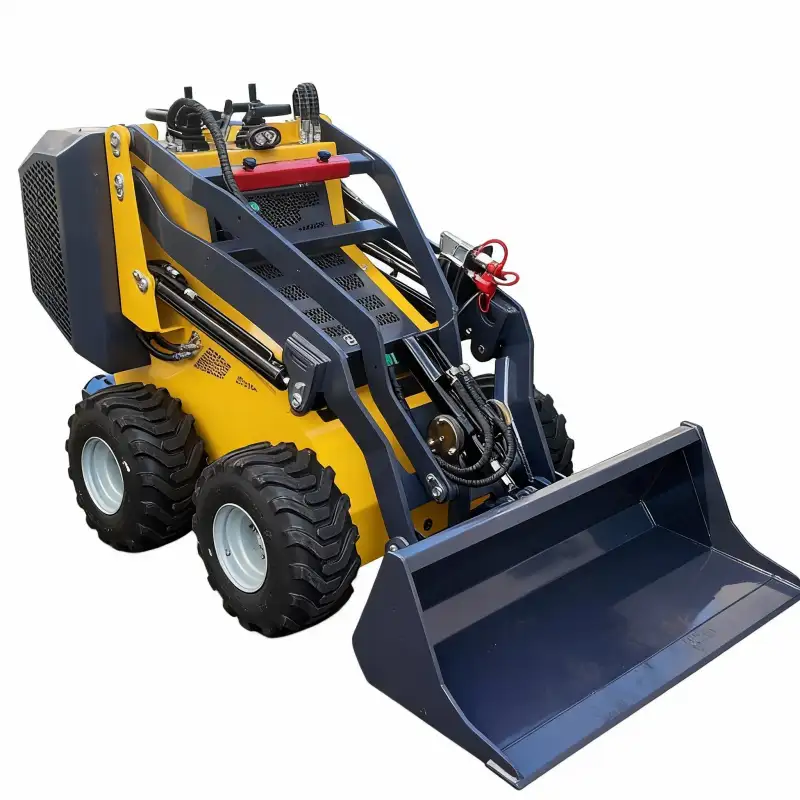

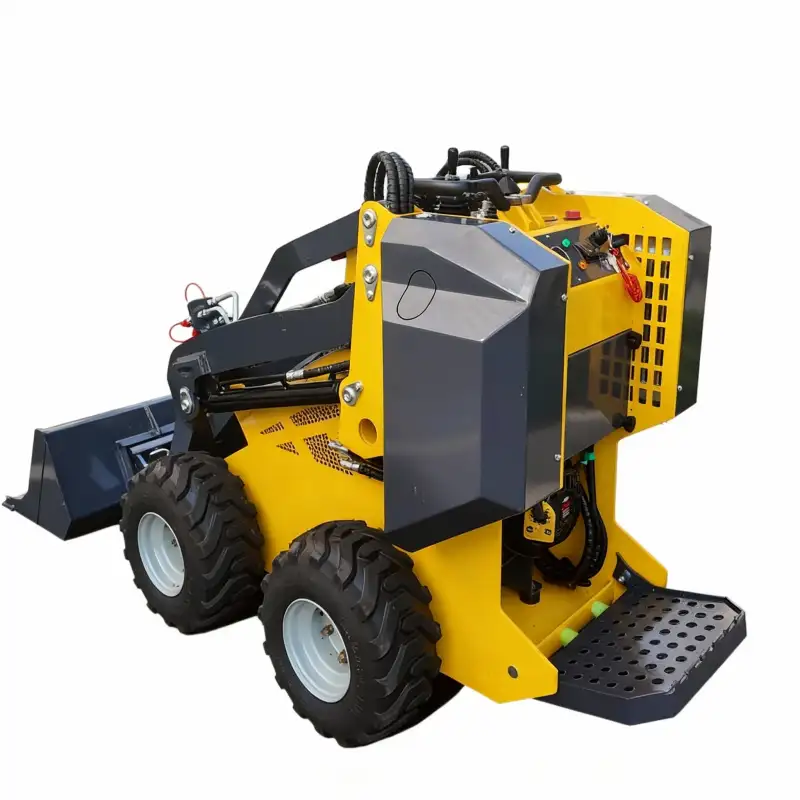

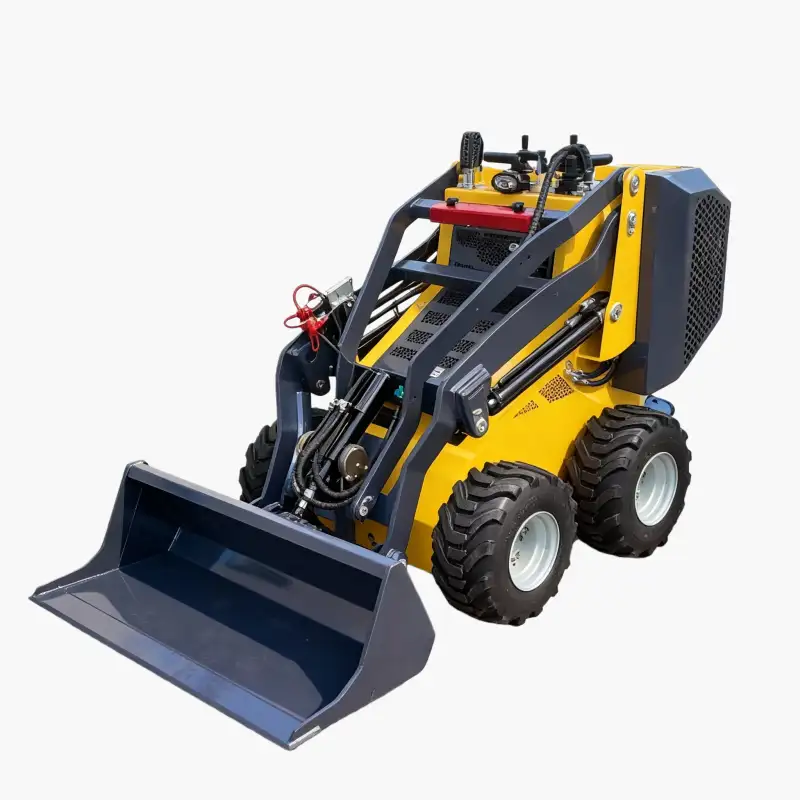

SN-S370
Compact Wheeled Skid Steer Loader for Narrow Spaces
The S370 mini skid steer loader is a compact wheeled skid steer loader designed for small job sites, narrow access areas, and applications requiring frequent attachment changes.
With its easy-to-operate system, counterbalanced arm structure, and EPA and Euro 5 compliant engine, the S370 delivers reliable performance, flexibility, and cost-effectiveness for construction, landscaping, agriculture, and municipal applications.
Its small size and stable lifting performance make the S370 an ideal entry-level skid steer loader for contractors, rental companies, and equipment dealers.
Key Features of the S370 Mini Skid Steer Loader
- Compact and Flexible Design: Ideal for narrow spaces and small job sites
- Easy-to-Operate System: Simple controls, easy to learn, and high work efficiency

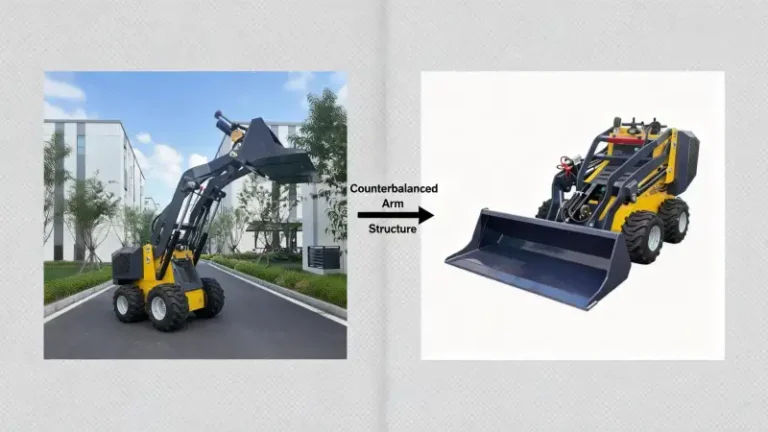

- Counterbalanced Arm Structure: Greater stability during lifting and loading
- Wheeled Skid Steer Loader: High maneuverability on hard surfaces such as concrete and asphalt

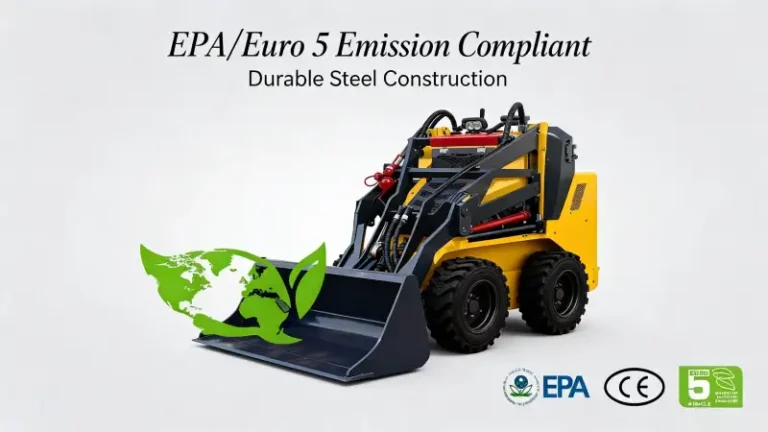

- EPA/Euro 5 Emission Compliant: Suitable for European and North American markets
- Durable Steel Construction: Thickened steel plates with anti-corrosion treatment
- Low Operating Costs: Simple structure, easy maintenance, and high fuel efficiency
Engine and Performance
The S370 skid steer loader is powered by a reliable gasoline engine, providing consistent output for everyday light to medium-duty tasks:
- Engine Brand: B&S (Briggs & Stratton)
- Engine Model: XR13.5 / 25T2
- Rated Power: 8.6 kW
- Intake Method: Naturally aspirated
- Emission Standard: EPA / Euro 5
- Fuel Tank Capacity: 21 liters
- Travel Speed: 0–5.5 km/h
This power configuration ensures easy starting, smooth operation, and compliance with international emission regulations.
Hydraulic System and Operation
- Working System Pressure: 17 bar
- Three-function Cycle Time: 9 seconds
- Maximum Breakout Force: 3.5 kN
- Gradeability: 25°
The optimized hydraulic system provides smooth lifting, stable bucket control, and reliable operation, suitable for frequent loading tasks. Attachments and Applications
Typical applications:
- Small construction sites
- Landscaping and garden maintenance
- Farms and livestock facilities
- Industrial material handling
- Urban and municipal maintenance
- Rental equipment fleets
Why choose the S370 Mini Skid Steer Loader?
The S370 compact skid steer loader achieves a perfect balance of size, performance, and price. Its ease of operation, EPA and Euro 5 compliance, and versatile attachment compatibility make it a smart choice for contractors, rental companies, and distributors seeking a reliable mini skid steer loader solution.
👉Contact us today to learn more about pricing, OEM customization, and dealer opportunities for the S370 mini skid steer loader.
| Item | Value |
|---|---|
| Model | S370 |
| Operating weight | 1000kg |
| Bucket capacity | 0.07m³ |
| Climbing ability | 25º |
| Maximum breakout force | 3.5KN |
| Rated load | 180kg |
| Maximum load | 210kg |
| Travel speed | 0-5.5km/h |
| Three-item sum of work | 9s |
| Working system pressure | 17bar |
| Bucket width | 1070mm |
| Max loading height | 1925mm |
| Max dumping height | 1373mm |
| Max operating height | 2415mm |
| Height to bucket pin | 1925mm |
| Max height bucket dump angle | 63º |
| Min heiaht | 1208mm |
| Tail length | 500mm |
| Ground clearance | 122mm |
| Dumping distance | 83mm |
| Wheelbase | 650mm |
| Overall dimensions | 2138*1070*1208mm |
| Length including bucket | 2138mm |
| Length excluding bucket | 1528mm |
| Tire model | 18*8.5-8 |
| Engine Brand | B&S |
| Engine Model | 25T2 |
| Rated power | 8.6kw |
| Cylinder | 1 |
| Intake method | Naturally aspirated |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 21L |
