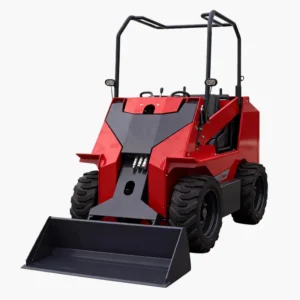

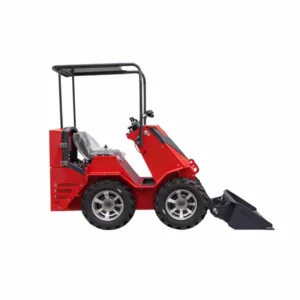

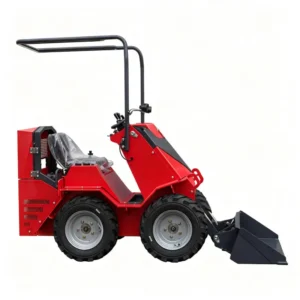

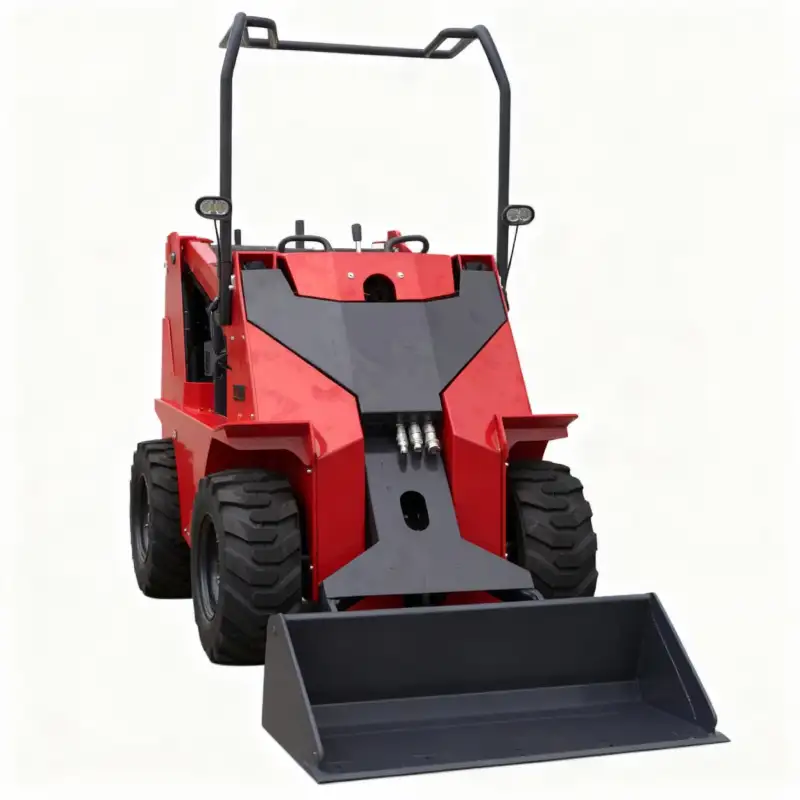

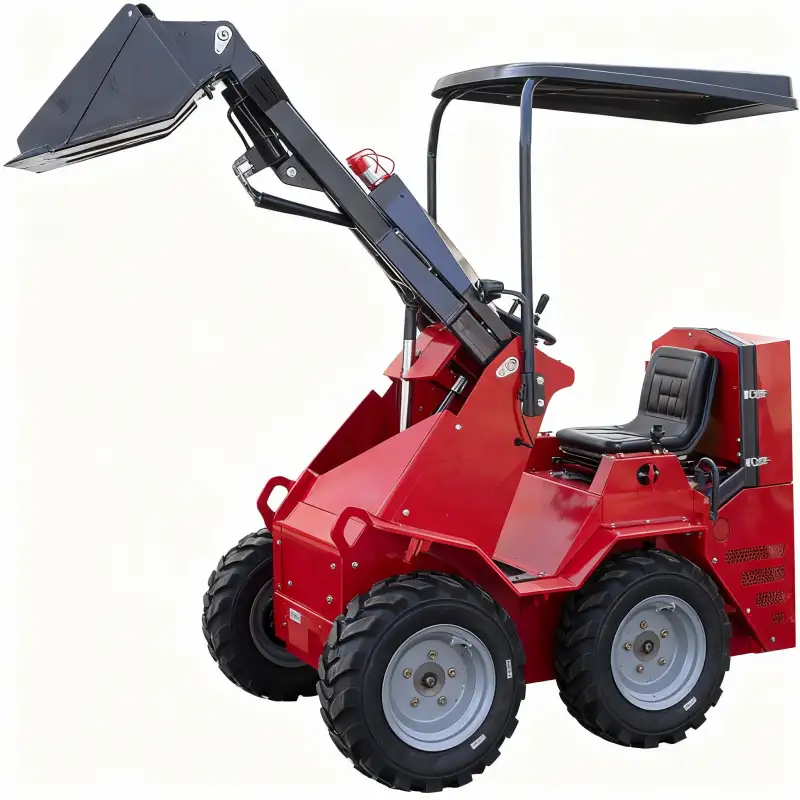

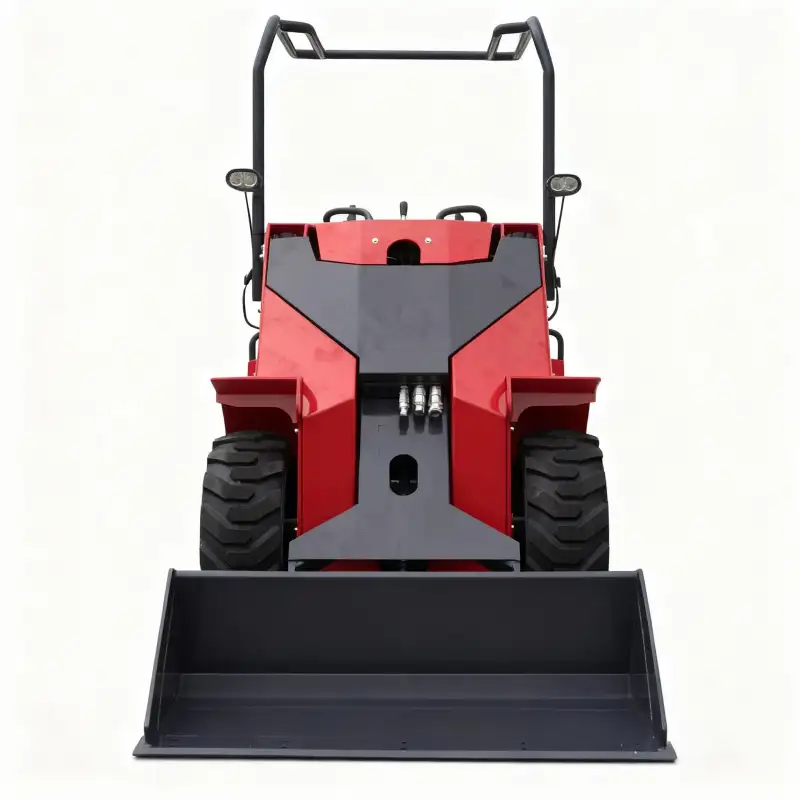

SN-S390
Heavy-Duty Compact Wheel Skid Steer Loader
The S390 Mini Skid Steer Loader is an upgraded wheel skid steer loader designed for higher working heights, greater stability, and enhanced on-site productivity. Compared to smaller mini loaders, the S390 offers a longer reach, improved operator comfort, and superior performance for demanding landscaping, construction, and agricultural applications.
Key Features and Benefits
Higher Working Height – Increased lifting capacity for easier truck loading and material stacking.

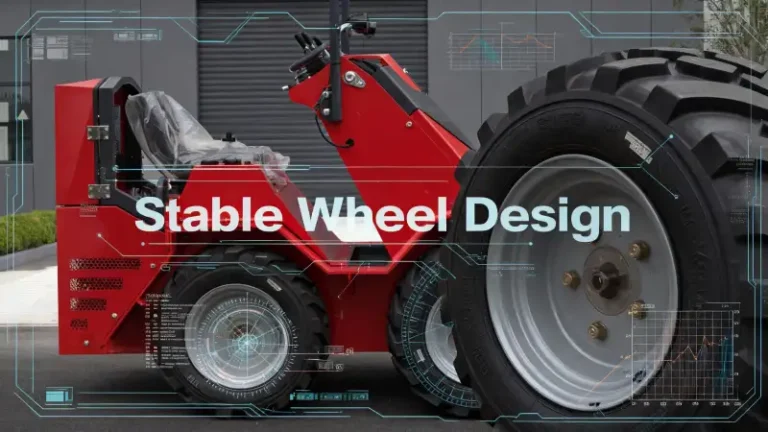

Stable Wheel Design – Smooth operation and precise control on hard or paved surfaces.
Powerful Load Performance – Designed for continuous daily operation.

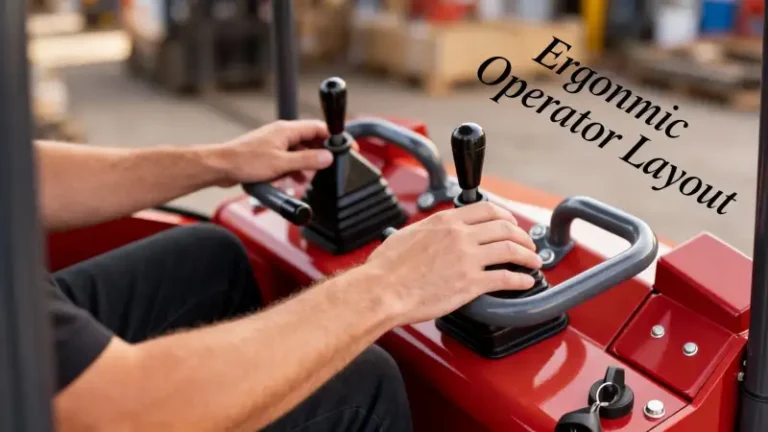

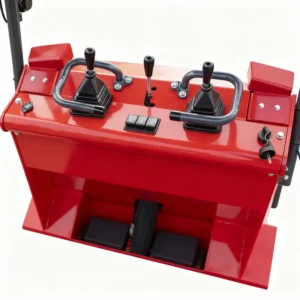

Ergonomic Operator Layout – Open cab with protective canopy for excellent visibility and comfortable operation.
OEM and Customization Support – Color, branding, engine, and attachment options available.

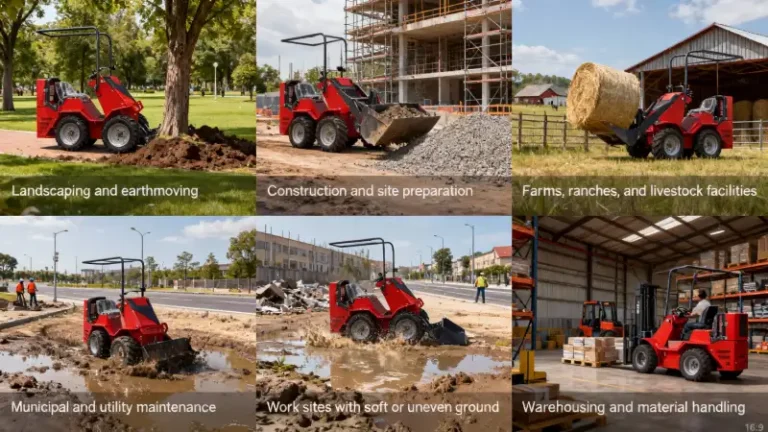

Applications
The S390 Mini Skid Steer Loader is ideal for the following applications:
- Landscaping and site preparation
- Construction material handling
- Farms, barns, and agricultural facilities
- Municipal maintenance projects
- Warehouse and yard operations
As a robust and durable mini front loader, it bridges the gap between compact mini loaders and larger skid steer loaders
Why Choose the S390 Mini Skid Steer Loader?
Compared to smaller models like the S360, the S390 offers a higher lift height, longer reach, and greater stability. It’s an excellent choice for customers who require greater working capacity while retaining the advantages of a compact wheel mini skid steer loader.
If you are looking for a high-performance, reliable, and export-ready mini skid steer loader or mini loader, the S390 offers exceptional value.
👉 Contact us today for pricing, OEM customization, or dealer partnership opportunities.
| Item | Value |
|---|---|
| Model | S390 |
| Operating weight | 1050kg |
| Bucket capacity | 0.12m³ |
| Climbing ability | 25º |
| Maximum breakout force | 3.5KN |
| Rated load | 200kg |
| Maximum load | 300kg |
| Travel speed | 0-6km/h |
| Three-item sum of work | 9s |
| Working system pressure | 17bar |
| Bucket width | 1050mm |
| Max loading height | 1830mm |
| Max dumping height | 1470mm |
| Max operating height | 2620mm |
| Height to bucket pin | 2000mm |
| Max height bucket dump angle | 63º |
| Min heiaht | 1250mm |
| Tail length | 220mm |
| Ground clearance | 180mm |
| Dumping distance | 600mm |
| Wheelbase | 800mm |
| Overall dimensions | 2400*1050*1250mm |
| Length including bucket | 2400mm |
| Length excluding bucket | 1900mm |
| Tire model | 23*8.5-12 |
| Engine Brand | Lithium electricity/KOOP/Rato/B&S |
| Engine Model | Lithium iron phosphate/192f/R420/XR 13.5 |
| Rated power | 6kw、72V、 125ah/7.5/8.6/9.9kw |
| Cylinder | 1 |
| Intake method | Natural inhalation |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 5L |
