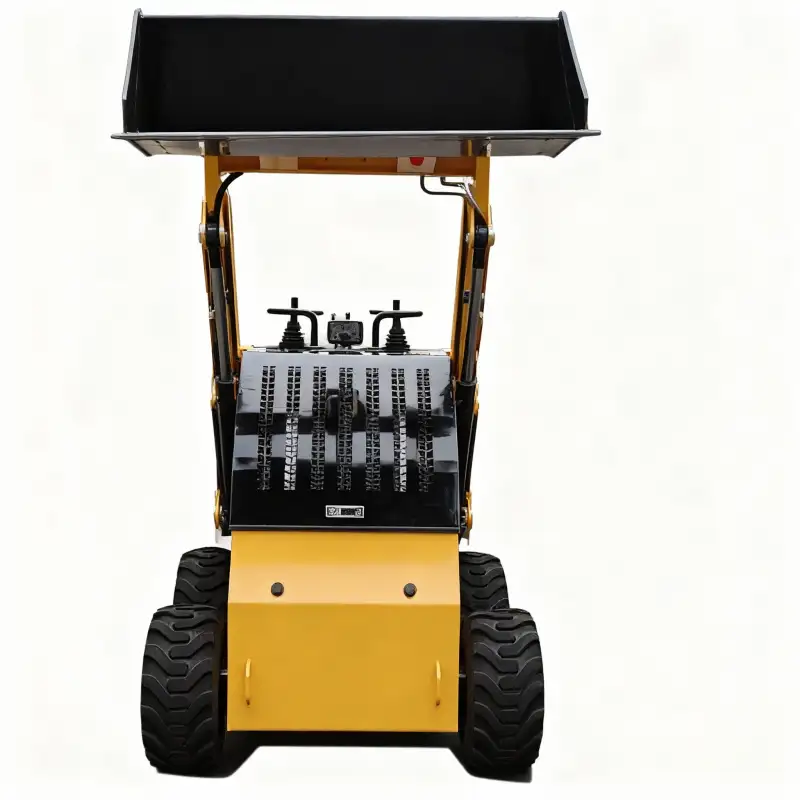

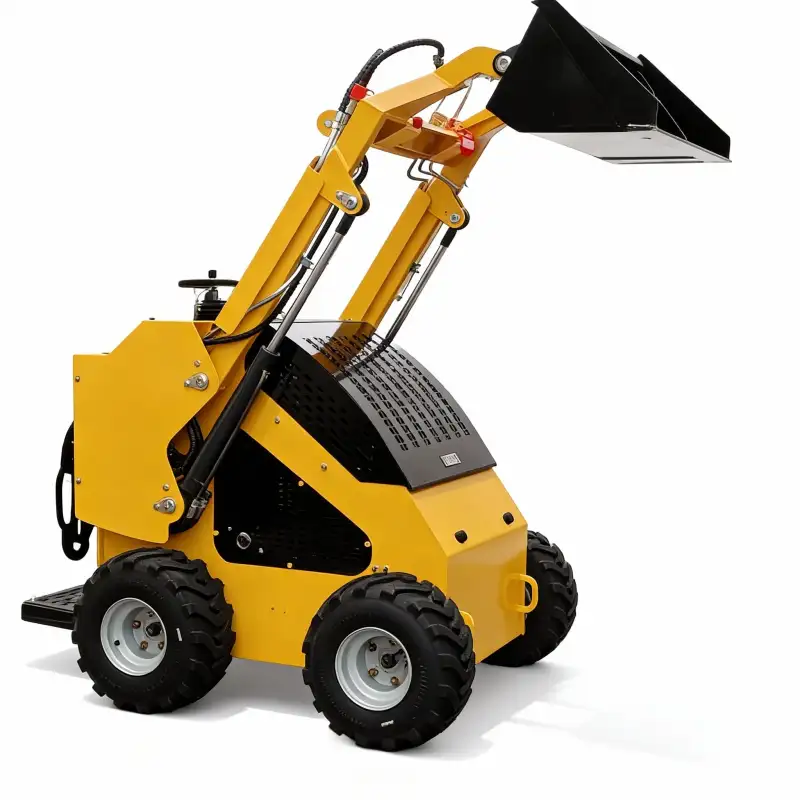

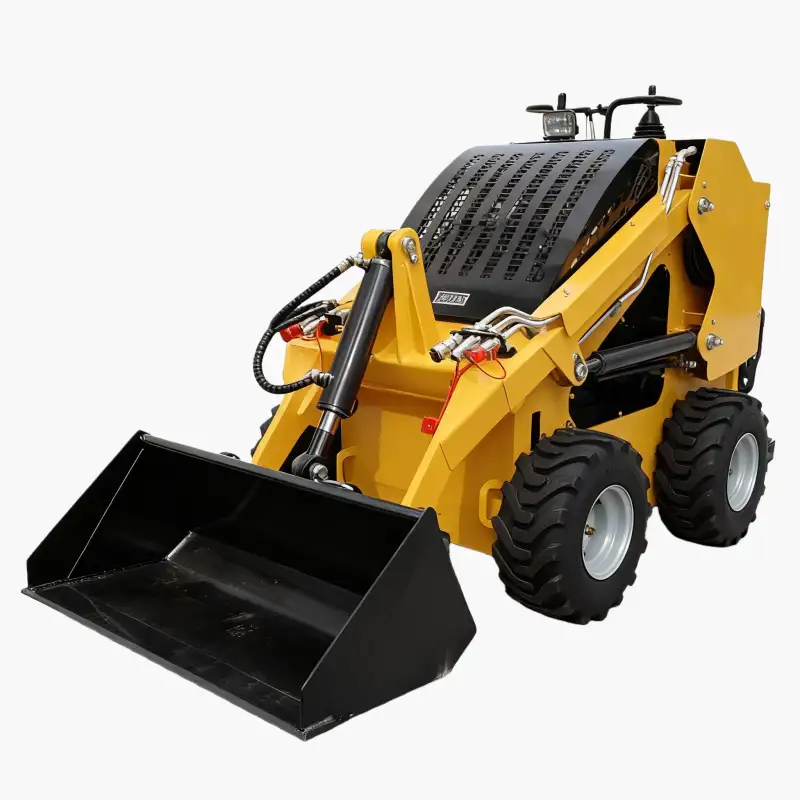

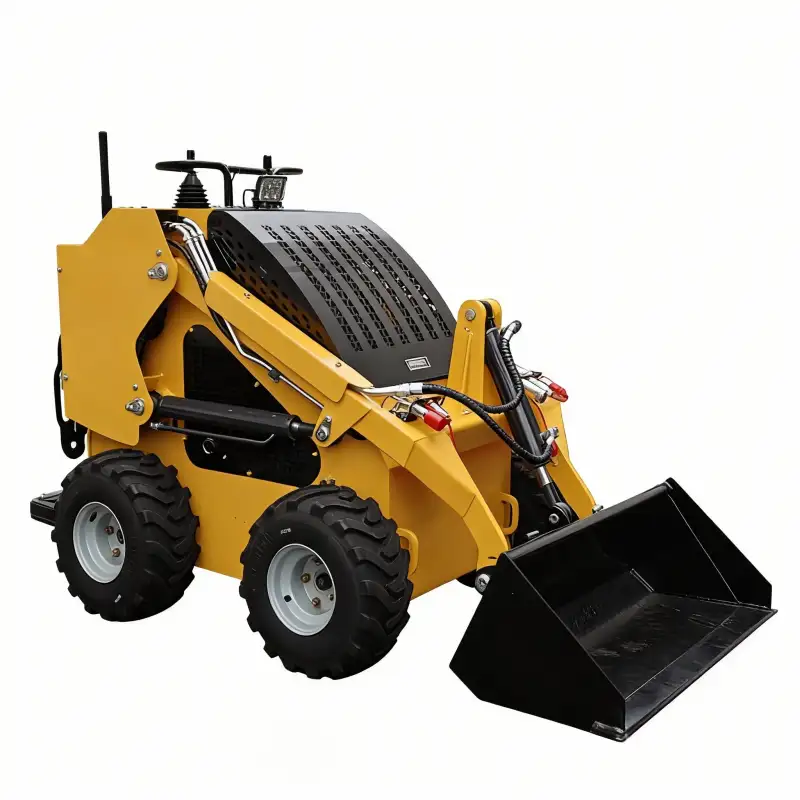

SN-S480
Compact Wheel Skid Steer Loader with Excellent Performance
The S480 mini skid steer loader is a compact wheeled skid steer loader designed for medium-sized construction, landscaping, agricultural, and municipal applications.
Equipped with heavy-duty reinforced tires, a high-efficiency hydraulic oil cooler, and an optional self-leveling arm, the S480 delivers stable performance, high efficiency, and exceptional durability in demanding work environments.
The S480 skid steer loader features a reliable Yanmar diesel engine that meets EPA and Euro 5 emission standards, making it ideal for export markets, rental fleets, and professional contractors.
Key Features of the S480 Mini Skid Steer Loader
- Heavy-duty reinforced tires: Increased durability and traction on hard surfaces
- High-efficiency hydraulic oil cooler: Ensures stable performance during extended operation
- Optional self-leveling arm: Enhances lifting stability and safety
- Compact wheeled skid steer loader design: Fast and efficient movement on paved surfaces
- Powerful lifting capacity: Rated load of 350 kg, maximum load up to 450 kg
- Powerful digging force: Up to 5.5 kN, capable of handling various high-intensity loading tasks
- EPA/Euro 5 certified engine: Meets international emission requirements
Engine and Performance
The S480 mini skid steer loader is powered by a proven Yanmar diesel engine, providing powerful output and fuel efficiency:
- Engine Brand: Yanmar
- Engine Model: 3TNV80
- Rated Power: 17.8 kW
- Number of Cylinders: 3
- Intake Method: Naturally aspirated
- Emission Standard: EPA/Euro 5
- Fuel Tank Capacity: 13 liters
- Travel Speed: 0–6 km/h
This engine configuration ensures reliable operation, low fuel consumption, and compliance with strict environmental regulations.
Hydraulic System and Operation
- Working System Pressure: 17–21 bar
- Three-function Cycle Time: 9 seconds
- Bucket Width: 1050 mm
- Bucket Capacity: 0.12 cubic meters
The advanced hydraulic system provides smooth, precise control and stable lifting performance even under heavy load conditions. Attachments and Applications
The S480 mini skid steer loader supports a variety of attachments through a quick-connect system.

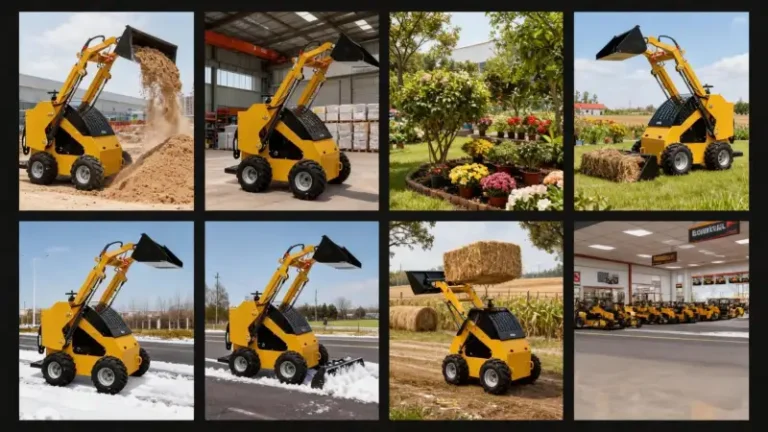

Typical applications:
- Small construction sites
- Landscaping and garden maintenance
- Farms and livestock facilities
- Industrial material handling
- Urban and municipal maintenance
- Rental equipment fleets
Why choose the S480 Mini Skid Steer Loader?
The S480 compact skid steer loader achieves a perfect balance of power, stability, and efficiency. Meeting EPA and Euro 5 emission standards, equipped with reinforced components, and compatible with a wide range of attachments, it is the ideal choice for contractors, rental companies, and distributors seeking a reliable mid-size mini skid steer loader.
👉Contact us today to learn more about pricing, OEM customization, and dealer opportunities for the S370 mini skid steer loader.
| Item | Value |
|---|---|
| Model | S480 |
| Operating weight | 1200kg |
| Bucket capacity | 0.12m³ |
| Climbing ability | 25º |
| Maximum breakout force | 5.5KN |
| Rated load | 350kg |
| Maximum load | 450kg |
| Travel speed | 0-6km/h |
| Three-item sum of work | 9s |
| Working system pressure | 17-21bar |
| Bucket width | 1050mm |
| Max loading height | 1720mm |
| Max dumping height | 1510mm |
| Max operating height | 2400mm |
| Height to bucket pin | 1870mm |
| Max height bucket dump angle | 63º |
| Min heiaht | 1300mm |
| Tail length | 500mm |
| Ground clearance | 110mm |
| Dumping distance | 250mm |
| Wheelbase | 800mm |
| Overall dimensions | 2140*1120*1300mm |
| Length including bucket | 2140mm |
| Length excluding bucket | 1850mm |
| Tire model | 18*8.5-8 |
| Engine Brand | Yanmar |
| Engine Model | 3TNV80 |
| Rated power | 17.8kw |
| Cylinder | 3 |
| Intake method | Naturally aspirated |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 13L |
