SN-S490

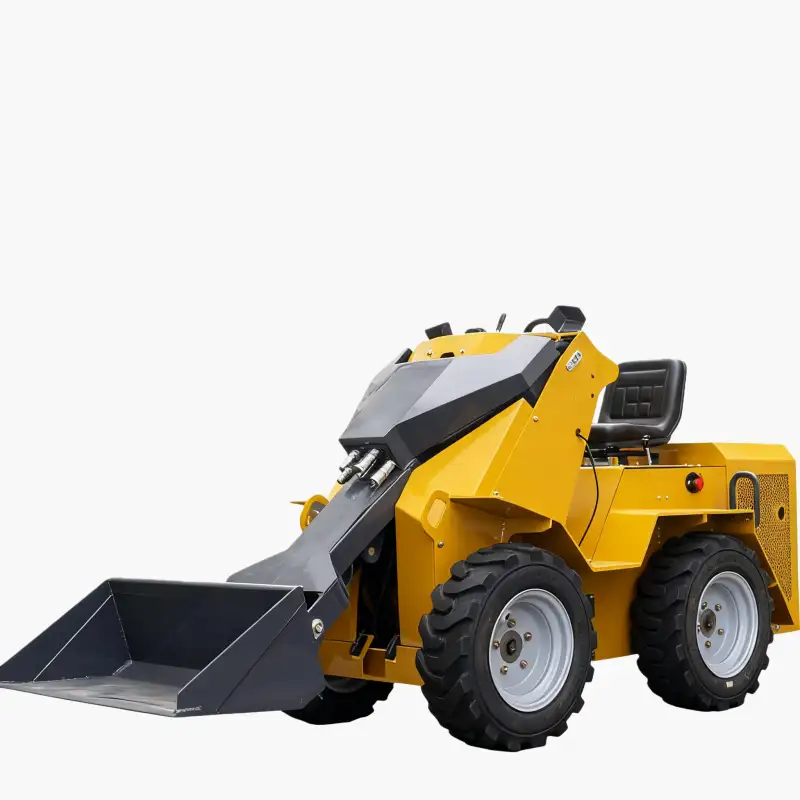

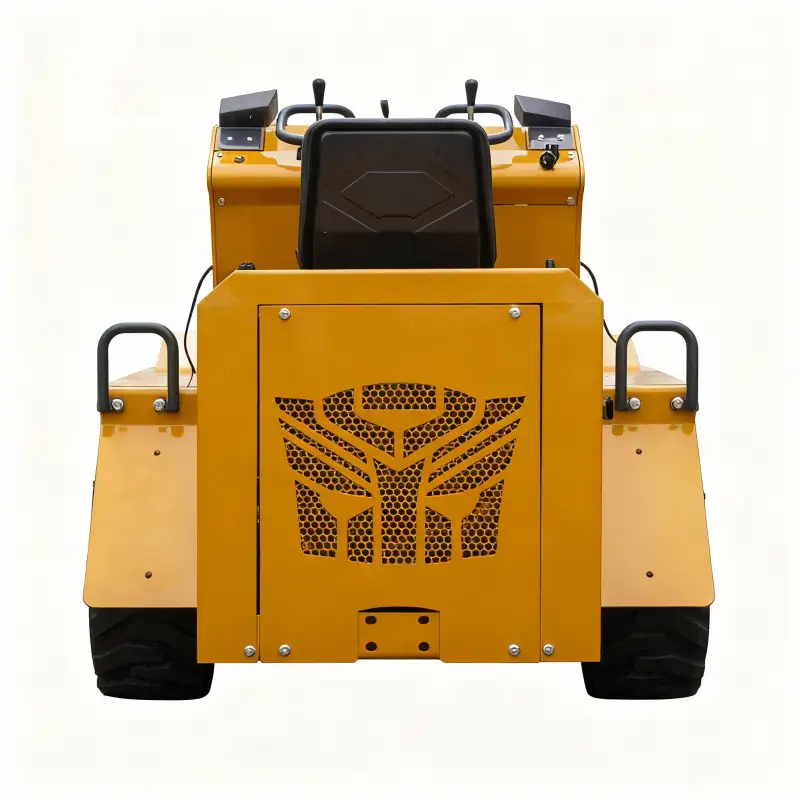

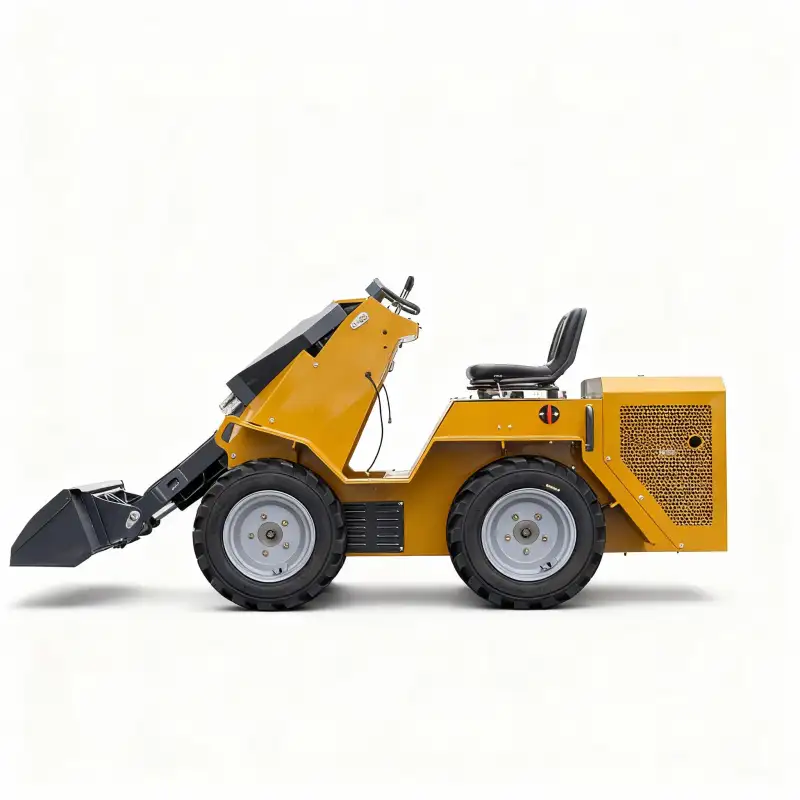

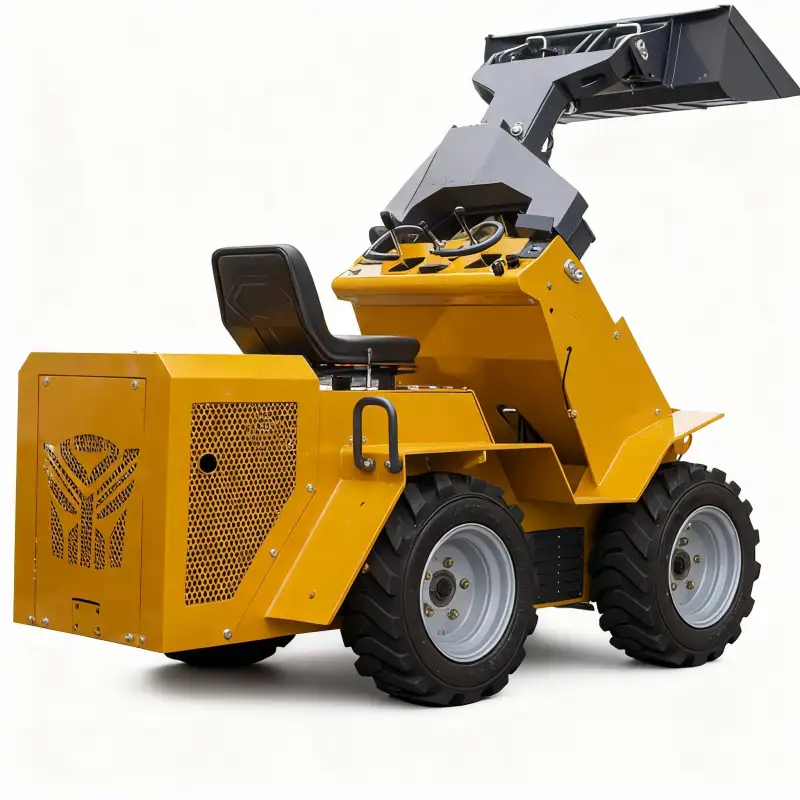

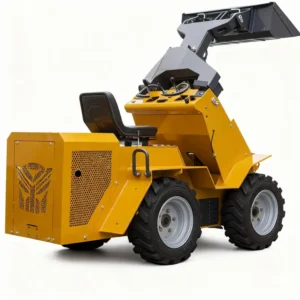

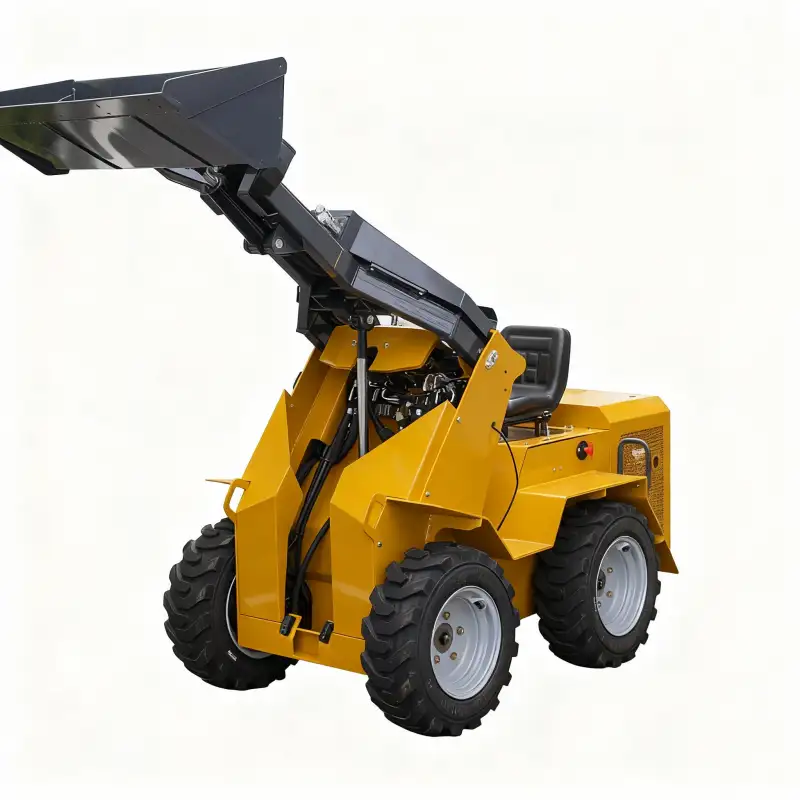

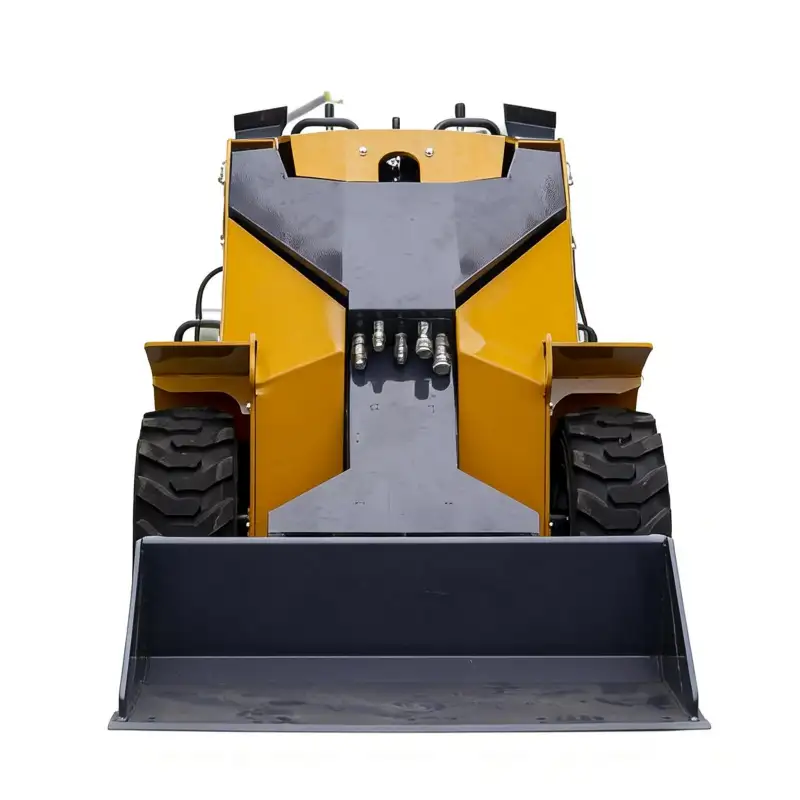

S490 Wheeled Mini Skid Steer Loader
- Wheeled design for fast movement on hard surfaces
- Available in diesel and electric models
- Compact body with a wider dumping range
- Easy to operate and low maintenance costs
- Can be equipped with various attachments
- Ideal for contractors, rental companies, and dealers
The SN-S490 wheeled mini skid steer loader is a compact, efficient, and economical machine designed for construction, landscaping, agriculture, and municipal engineering applications.
Featuring a wheeled chassis, flexible power options, and a reliable hydraulic system, the S490 provides professional users with excellent maneuverability, fast travel speed, and convenient maintenance.
SN-S490 Mini Skid Steer Loader Key Features
Diesel and Electric Power Options
- Optional Koop / Rato / Runtong diesel engine or electric motor
- Electric version power: 8 kW (72V 200Ah battery)
- Diesel version meets EPA and EURO 5 emission standards
- Suitable for indoor and outdoor operation
Wheeled Design, High Maneuverability
- Four-wheel skid steering design for fast movement on hard surfaces
- Lower ground resistance compared to tracked models
- Ideal for warehouses, paved construction sites, and urban environments
Compact Size, Practical Lifting Capacity
- Rated load: 250 kg
- Maximum load: 350 kg
- Maximum breakout force: 4.5 kN
- Compact structure with long dumping distance

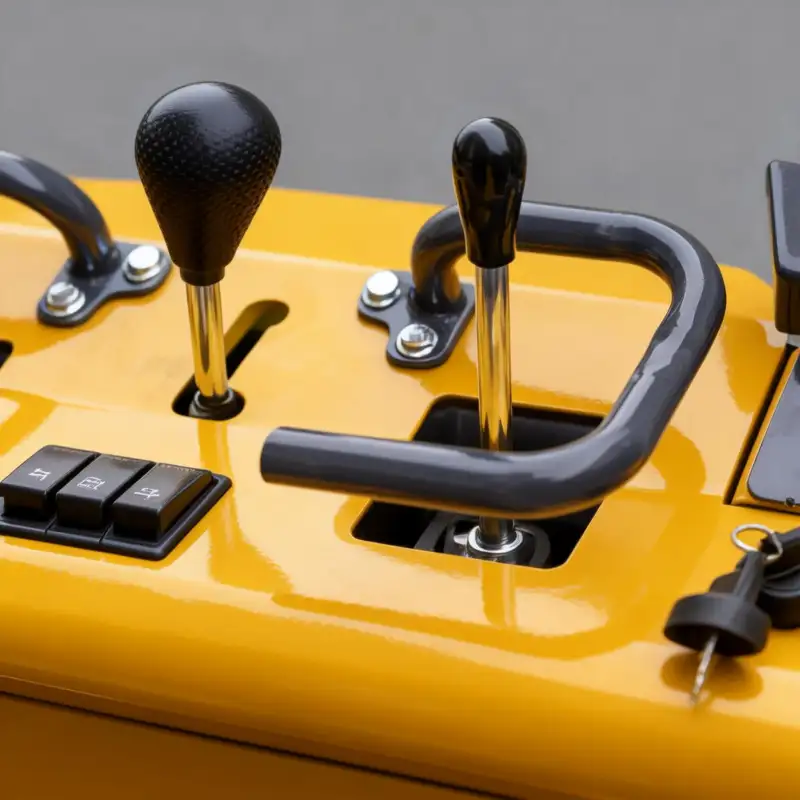

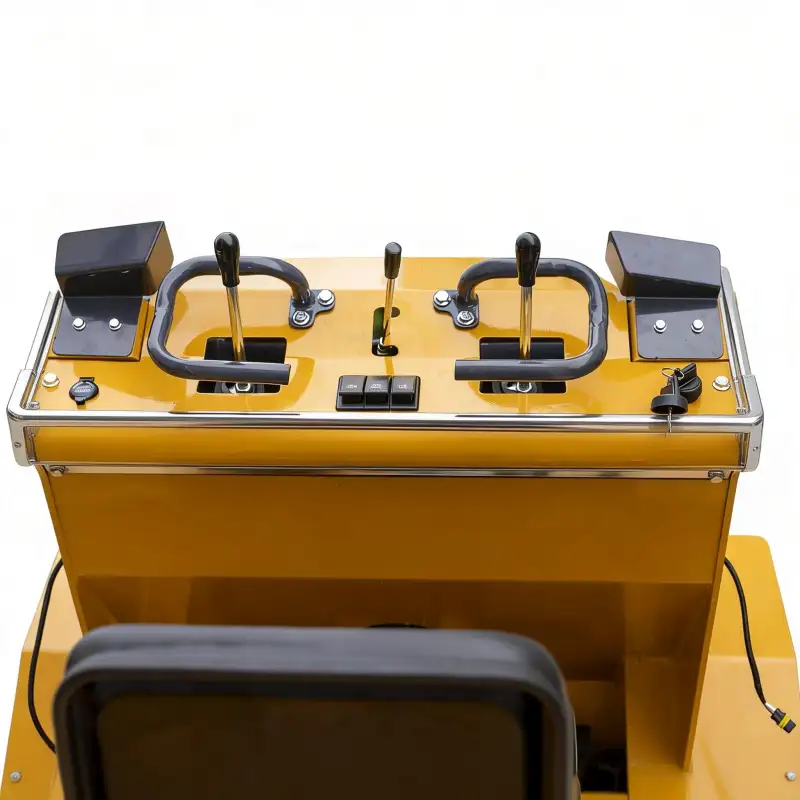

Easy and Precise Control
- Ergonomic central control system
- Simple operation, easy for beginners
- Smooth lifting, dumping, and steering response
- Work cycle time: 9 seconds

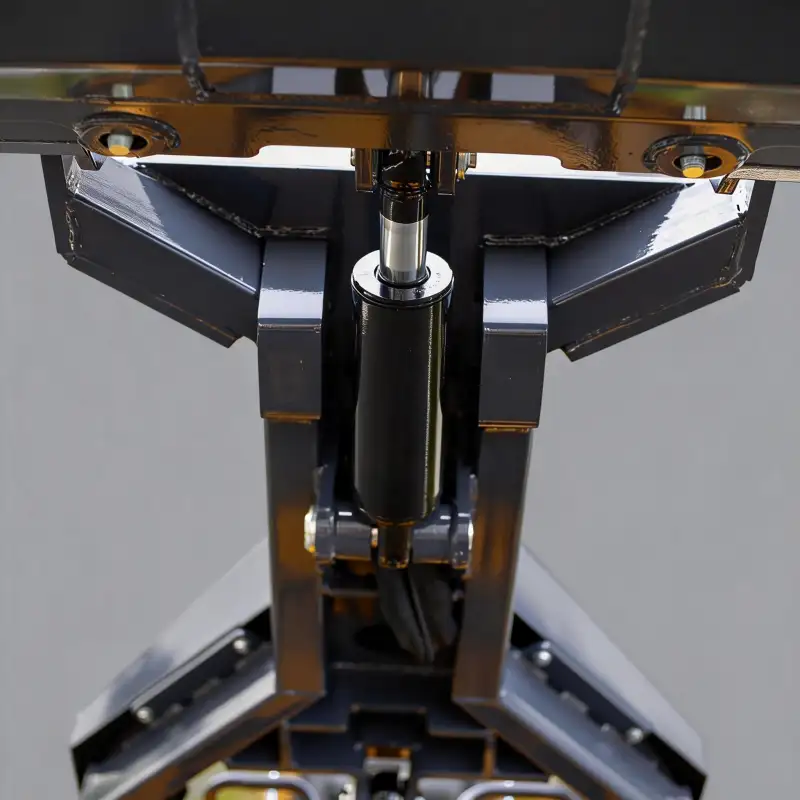

Reliable Hydraulic System
- High-quality hydraulic cylinders and hoses
- Simple structure, low failure rate
- Hydraulic system pressure: 17–21 bar
- Stable performance for continuous operation
Applications
The SN-S490 wheeled mini skid steer loader is widely used in:
- Construction and renovation projects
- Landscaping and garden maintenance
- Farms and livestock facilities
- Municipal maintenance
- Warehouses and factories
Looking for a flexible and cost-effective mini skid steer loader?
👉Contact us today for pricing, specifications, and OEM/ODM solutions.
| Item | Value |
|---|---|
| Model | S490 |
| Operating weight | 1200kg |
| Bucket capacity | 0.12m³ |
| Climbing ability | 25º |
| Maximum breakout force | 4.5KN |
| Rated load | 250kg |
| Maximum load | 350kg |
| Travel speed | 0-6km/h |
| Three-item sum of work | 9s |
| Working system pressure | 17-21bar |
| Bucket width | 1050mm |
| Max loading height | 1740mm |
| Max dumping height | 1429mm |
| Max operating height | 2574mm |
| Height to bucket pin | 1933mm |
| Max height bucket dump angle | 63º |
| Min heiaht | 1300mm |
| Tail length | 500mm |
| Ground clearance | 180mm |
| Dumping distance | 595mm |
| Wheelbase | 925mm |
| Overall dimensions | 2644*1089*1264mm |
| Length including bucket | 2644mm |
| Length excluding bucket | 2300mm |
| Tire model | 23*8.5-12 |
| Engine Brand | Lithium electricity/KOOP/Rato/B&S |
| Engine Model | Lithium iron phosphate/292f/R740/Vanguard23 |
| Rated power | 8kw、72V、200ah/15/19.2/17kw |
| Cylinder | 2 |
| Intake method | Naturally aspirated |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 10L |
